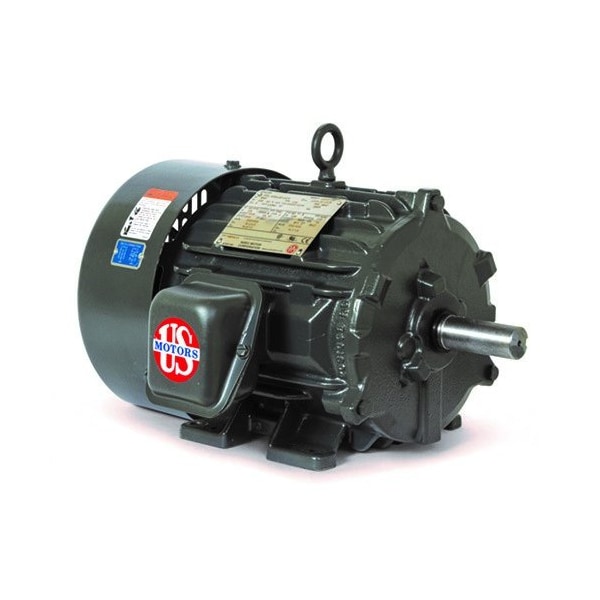

U.S. Motors GP Motor, 2 HP, 1745V RPM, 230/460,145TC HD2P2E - main

GP Motor, 2 HP, 1745V RPM, 230/460,145TC

  • Mfr # HD2P2E

  • Zoro # G1942100

product price: $438.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1,745
Voltage
230/460V AC
Frame
145TC
Shaft Dia.
7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HD2P2E
Zoro #
G1942100
UPC #
786382127077
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 3/8 in
Length Less Shaft
11 1/8 in
Manufacturers Warranty Length
3 yr
Overall Length
13 1/2 in

Details

HP
2
Nameplate RPM
1,745
Voltage
230/460V AC
Frame
145TC
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Hz
60/50 Hz
Item
General Purpose Motor
Motor Sub Application
Foundries, Mines, Agricultural Fan
Motor Mounting Type
Rigid Base
Motor Design
Three-Phase
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Full Load Amps
5.3/2.7 A
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Application
General Purpose
Phase
Three
Ins. Class
F
Motor Bearings
Ball
Motor Service Factor
1.15
Standards
CSA Certified, UL Recognized
Weight
70 lb
Motor Frame Material
Cast Iron
Nominal Efficiency
86.5 %
Usable @ 208V
Yes
NEMA Design
B
Usable @ 200V
Yes
Bearing Protection
Double Shielded
Removable Base
Regreasable
RPM @ 50Hz
1,435
Inverter Rated
Yes
Service Factor @ 50Hz
1
Full Load Amps @ 50Hz
6.1/3 A
Includes
All Cast Iron Upgrade, C&D Flanges, Canopy Kits
Voltage @ 50Hz
200/400V AC
HP @ 50Hz
2 hp
Duty Cycle
Continuous
Part Winding Start Capable
No
Inverter Rating
20:1 (3-60hz) Variable Torque, 5:1 (12-60hz) Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1,745, Frame 145TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 5.3/2.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 1,701-1,800, CSA Certified, UL Recognized
