Fasco

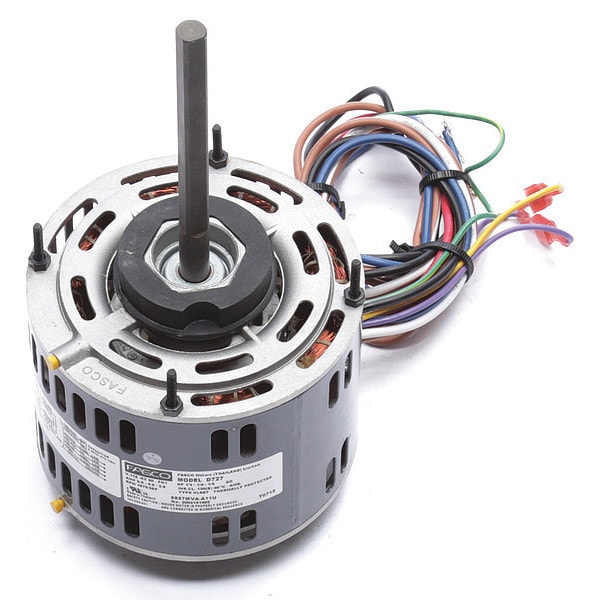

Direct Drive Blower Motor, 1/3 HP, 115V

product price: $108.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bolt Circle Dia. 5 1/4 in
  • Nominal Efficiency 0.51 %
  • Motor Shaft Rotation CW/CCW
  • Motor Shaft Design Double-Flat
  • Ins. Class B
See all product information

Product Information

Dimensions

Bolt Circle Dia. 5 1/4 in
Overall Length 10 15/16 in
Shaft Dia. 1/2 in
Manufacturers Warranty Length 1 yr
Stud Size #8-32
Mounting Stud Length 13/16 in
Length Less Shaft 4 5/8 in
Resilient Ring Dia. 2 1/2 in
Shaft Length 6 in
Body Dia. 5 5/8 in
Lead Length 26 in

Details

Nominal Efficiency 0.51 %
Motor Shaft Rotation CW/CCW
Item Direct Drive Blower Motor
Motor Shaft Design Double-Flat
Ins. Class B
Voltage 115V AC
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
RPM Range 1,001-1,100
Hz 60 Hz
Full Load Amps 5.9-4.6-3.8 A
Motor Bearings Sleeve
Motor Design Permanent Split Capacitor
HP 1/3, 1/4, 1/5
Motor Application HVAC/R
Motor Enclosure Design Open Dripproof
Max. Ambient Temp. 40 Degrees C
Capacitor Required 2MDV4
Motor Sub Application Direct Drive Fan/Blower
Mounting Stud Location 4/Shaft End
Motor Mounting Position All Angle
Frame 48
Motor Mounting Type Stud
Standards CSA Certified, UL Recognized
Motor Thermal Protection Auto
Nameplate RPM 1,075
Ring to Ring Center 5 1/16 in
No. of Speeds 3
Mounting Stud Pattern 3-11/16 in x 3-11/16 in
Phase Single
Duty Continuous
Motor Service Factor 1
Usable @ 208V No
Number of Shafts 1
Usable @ 200V No
Duty Cycle Continuous
Weight 13 lb
Motor Frame Material Steel

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3, 1/4, 1/5 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, Full Load Amps 5.9-4.6-3.8 A, 48 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 26 in, Motor Enclosure Design Open Dripproof, Motor Mounting Type Stud
