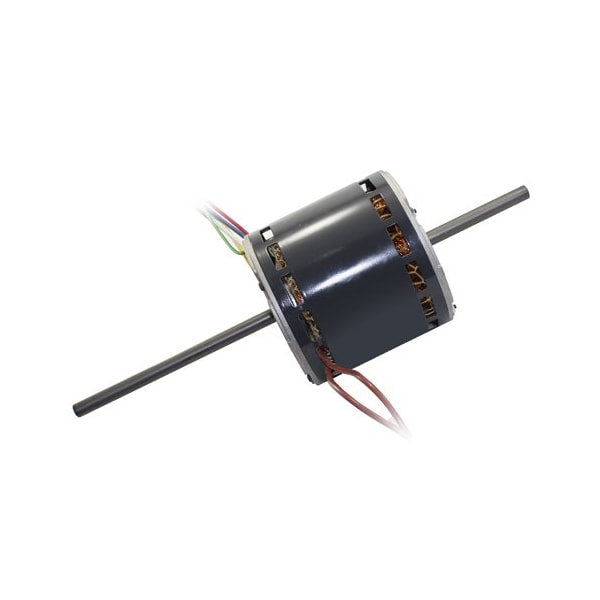

Motor, 1/2HP, 1075/4SPD, 115V, 60HZ, FLA7.9
Mfr # CA3414
Zoro # G0914171
product price:Â
$
140.99
/ea
Free Shipping & Returns
Key Features
Frame
48
HP
1/2 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CA3414
- Zoro #
- G0914171
- UPC #
- 786382100537
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 1/2 in
- Shaft Length
- 4 1/8 in
- Length Less Shaft
- 5 5/16 in
- Body Dia.
- 5.6"
- Manufacturers Warranty Length
- 1 yr
- Overall Length
- 17 in
- Shaft Diameter
- 1/2 in
- Body Diameter
- 5.6 in
- Frame Size
- 48Y
- Wire Rope Length
- 17 in
- Length
- 17 in
Description
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, 7.9 A Full Load Amps, 48Y Frame, Output Watts 400 W, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel, Shaft Length 4 1/8 in, Shaft Dia. 1/2 in
