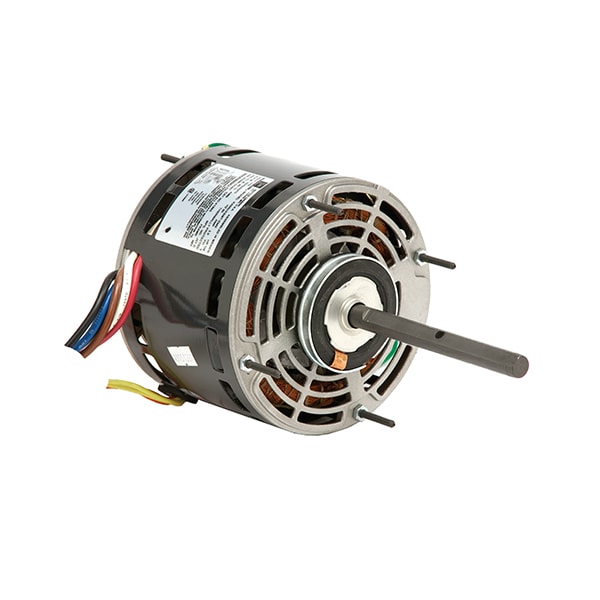

Motor, 1/2HP, 825/2SPD, 208-230V, 60HZ

  • Mfr # 3183

  • Zoro # G0914941

original price:  $310.99 , new price: $283.99 , 8 percent off
new price:  $283.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/2
RPM Range
0-1,000
Nameplate RPM
825
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3183
Zoro #
G0914941
UPC #
786382002862
Country of Origin
Mexico

Dimensions

Shaft Length
4 in
Body Dia.
5 5/8 in
Length Less Shaft
5 9/16 in
Shaft Dia.
1/2 in
Frame Size
48Y
Shaft Diameter
1/2 in
Body Diameter
5.6 in

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/2
RPM Range
0-1,000
Nameplate RPM
825
Voltage
230V AC
Frame
48
Motor Mounting Type
Band/Hub
Phase
Single
Motor Enclosure Design
Open Dripproof
Motor Service Factor
3.9
Motor Thermal Protection
Auto
Motor Shaft Rotation
CW/CCW
Full Load Amps
3.9 A
No. of Speeds
2
Motor Bearings
6203 (Opposite End Bearing); 6203 (Shaft End Bearing)
Ins. Class
B
Hz
60 Hz
Max. Amps
7.43 A
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Weight
12.6 lb
Watts
400 W
Duty Cycle
Continuous
Capacitor Required
Capacitor Included
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Belt Drive
Sub Application
General Purpose
Frame Material
Steel
Number of Speeds
2
Product Type
Fan and Blower Motor
Wattage
400 W
Full Load Current @ 60 Hz
3.9 A
Motor Enclosure Type
Open Drip Proof
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 825 RPM, No. of Speeds 2, Voltage 230V AC, 3.9 A Full Load Amps, 48Y Frame, Output Watts 400 W, 60 Hz Hz, Motor Service Factor 3.9, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Belly Band, Hub, Motor Frame Material Steel, Shaft Length 4 in
