Shop U.S. MOTORS

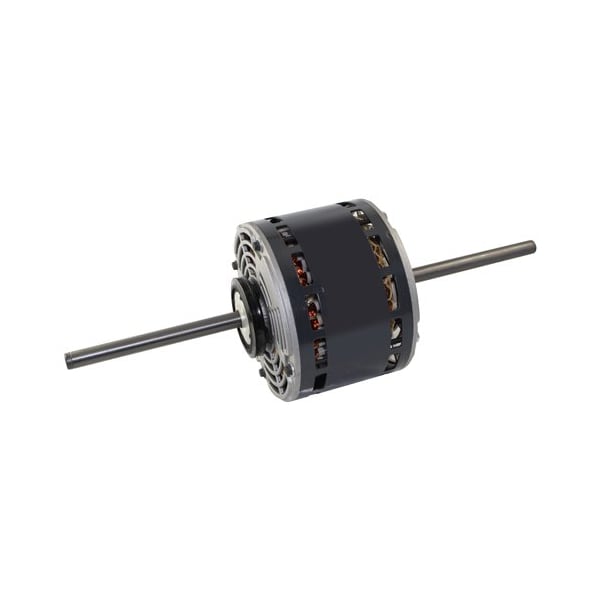

Motor, 1/3HP, 1600RPM, 208-230V, 60HZ

  • Mfr # CA3409

  • Zoro # G0915973

product price:  $115.99
/ea
Free Shipping & Returns

Key Features

Frame
48
HP
1/3 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CA3409
Zoro #
G0915973
UPC #
786382100506
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
5 1/4 in
Length Less Shaft
5 5/32 in
Body Dia.
5.6"
Manufacturers Warranty Length
1 yr
Overall Length
15 21/32 in
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Wire Rope Length
15 21/32 in

Details

Frame
48
HP
1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Fan Coil Motor
Motor Thermal Protection
Auto
Nameplate RPM
1600 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier
Phase
1
RPM Range
0-1,100
Voltage
208-230V
Motor Bearings
Self Align Bearings
Ins. Class
B
Full Load Amps
2.0 A
Capacitor Required
Included
Hz
60 Hz
Application
Fan
Weight
15.02 lb
Max. Amps
4.36 A
Watts
300 W
Ambient Temperature - Maximum
40 Degrees C
Wattage
300 W
Product Type
Fan and Blower Motor
Frequency
60 Hz
Frame Material
Steel
Drive Type
Direct Drive
Insulation Class
B
Motor Enclosure Type
Open Air Over
Full Load Current @ 60 Hz
2.0 A
Sub Application
General Purpose
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,600 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48Y Frame, Output Watts 300 W, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Frame Material Steel, Shaft Length 5 1/4 in, Shaft Dia. 1/2 in
