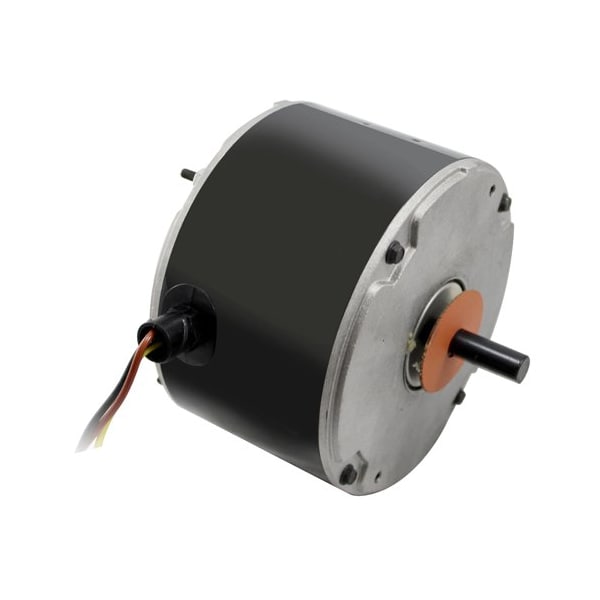

Motor, 1/4HP, 825RPM, 208-230V, 60HZ

  • Mfr # LX7931

  • Zoro # G0917014

product price:  $235.99
/ea
Free Shipping & Returns

Key Features

Frame
48
HP
1/4 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LX7931
Zoro #
G0917014
UPC #
786382100681
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 1/4 in
Length Less Shaft
4 13/16 in
Body Dia.
5.6"
Manufacturers Warranty Length
1 yr
Overall Length
7 1/16 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48Y

Details

Frame
48
HP
1/4 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
None
Nameplate RPM
825 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Lennox
Phase
1
RPM Range
0-1,000
Voltage
208-230V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Totally Enclosed Air Over
Full Load Amps
1.7A
Capacitor Required
Included
Hz
60 Hz
Application
Condenser Fan
Voltage Compatibility
208V AC, 230V AC
Number of Speeds
1
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over
Drive Type
Direct Drive
Frequency
60 Hz
Full Load Current @ 60 Hz
1.7 A
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.7 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Shaft Length 2 1/4 in, Shaft Dia. 1/2 in
