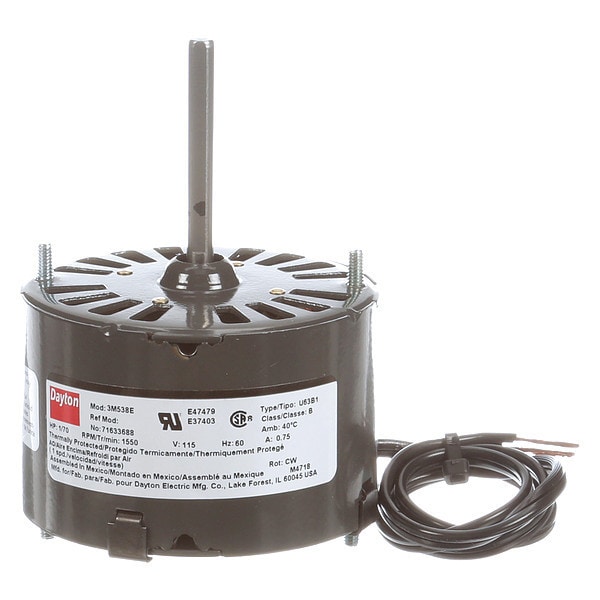

Dayton HVAC Motor, 1/70 HP, 1550 rpm, 115V, 3.3 71633688M - main

HVAC Motor, 1/70 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633688M

  • Zoro # G1839704

product price:  $58.19
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/70
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
71633688M
Zoro #
G1839704
UPC #
00663001431930
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Length Less Shaft
2 5/8 in
Cord Length
21 in
Shaft Length
2 1/4 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Overall Length
4 13/32 in
Frame Size
3.3

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/70
RPM Range
1,501-1,600
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Hz
60 Hz
Item
HVAC Motor
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design
Flat
Mounting Pattern
2-7/8
Full Load Amps
0.75 A
Number of Shafts
1
Mounting Stud Location
2/Both Ends
Motor Design
Shaded Pole
Motor Sub Application
Direct Drive Fan/Blower
Frame
3.3
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CWSE
No. of Speeds
1
Stud/Base Mtg. Pattern
2-7/8 in
Motor Application
HVAC/R
Motor Mounting Type
Ring/Stud
Duty
Continuous
Phase
Single
Ins. Class
B
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Mounting Stud Pattern
2 7/8 in
Duty Cycle
Continuous
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Type
OEM Replacement
Mounting
Stud
Insulation Class
B
Full Load Current @ 60 Hz
0.75 A
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Bearing Type
Sleeve
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Wattage
11 W
Shaft Design
Flat

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/70 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.75 A Full Load Amps, 3.3 Frame, Output Watts 11 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
