Shop U.S. MOTORS

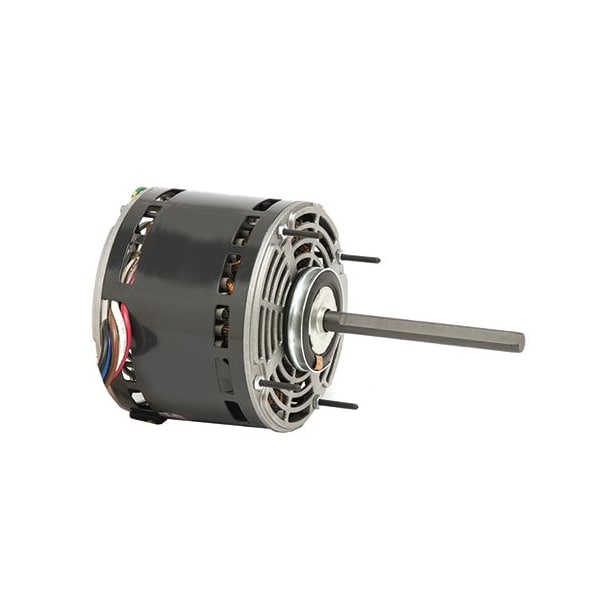

Motor, 1/5HP, 1050/3SPD, 115V, 60HZ, 42Y

  • Mfr # 1338P

  • Zoro # G0917294

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/5
RPM Range
1,101-1,200
Nameplate RPM
1,050
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1338P
Zoro #
G0917294
UPC #
786382081188
Country of Origin
Mexico

Dimensions

Shaft Length
4 11/16 in
Shaft Dia.
1/2 in
Length Less Shaft
5 15/16 in
Overall Length
10 7/8 in
Body Dia.
5 in
Shaft Diameter
1/2 in
Body Diameter
5 in
Frame Size
42

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/5
RPM Range
1,101-1,200
Nameplate RPM
1,050
Voltage
115V AC
Frame
42
Motor Mounting Type
Hub/Stud
Phase
Single
Motor Enclosure Design
Open Air-Over
Motor Bearings
Self-Align
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Max. Amps
6.35 A
Hz
60 Hz
Duty
Continuous
Ins. Class
B
No. of Speeds
3
Full Load Amps
3.2 A
Weight
19.6 lb
Watts
200 W
Duty Cycle
Continuous
Product Type
Fan and Blower Motor
Sub Application
General Purpose
Drive Type
Direct Drive
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Insulation Class
B
Capacitor Required
Capacitor Included
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
3

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 3, Voltage 115V AC, 3.2 A Full Load Amps, 42 Frame, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Hub, Stud, Motor Frame Material Steel, Shaft Length 4 11/16 in, Shaft Dia. 1/2 in
