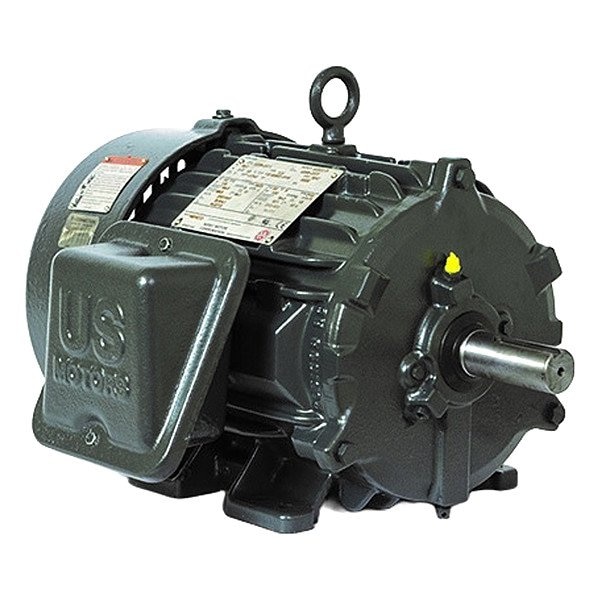

Motor, 184T, Rigid Base

  • Mfr # JF61

  • Zoro # G923360608

product price:  $751.99
/ea
Free Shipping & Returns

Key Features

NEMA Design Class
B
Frame Size
184T
Nominal Efficiency
88.5 %
Motor Design
Three-Phase
Inverter Rating
Inverter Rated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
JF61
Zoro #
G923360608
UPC #
-
Country of Origin
Mexico

Dimensions

Frame Size
184T
Overall Length
16 3/8 in

Details

NEMA Design Class
B
Nominal Efficiency
88.5 %
Motor Design
Three-Phase
Inverter Rating
Inverter Rated
Bearing Lubrication Type
Regreasable
Product Type
General Purpose Motor
Phase
Three
Full Load Current @ 60 Hz
12.3/6.1 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.25
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Item
Motor
Mounting Position
Horizontal
Nameplate RPM @ 50 Hz
2,930/2,940/2,945/2,895/2,910/2,925 RPM
Standards
CE, CSA, ISO9001:2015, UL, United States Department of Energy
Number of Speeds
1
Insulation Class
F
Efficiency Rating
NEMA Premium Efficiency
Frame Material
Cast Iron
Manufacturers Warranty
42 mo
Frequency
60 Hz
Variable Torque Rating
20:1
Application
Severe Duty

Description

Motor, Three-Phase, Three Phase, Motor Thermal Protection None, Nominal Efficiency 88.5 Percent, CE, CSA, ISO9001:2015, UL, United States Department of Energy
