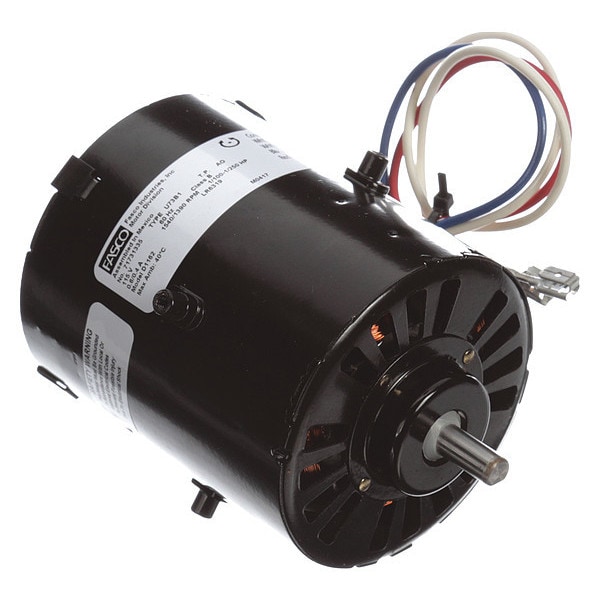

HVAC Motor, 1/100-1/250 HP, 115V, CW/CCW

  • Mfr # D1162
  • Zoro # G7500202
product price:
$
168.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,540/1,390
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100, 1/250
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1162
Zoro #
G7500202
UPC #
818508022246
Country of Origin
Mexico

Dimensions

Shaft Length
1 1/8 in
Body Dia.
3 5/16 in
Shaft Dia.
5/16 in
Length Less Shaft
4 1/2 in
Lead Length
7 in
Overall Length
5 1/4 in
Body Diameter
3.3 in
Shaft Diameter
5/16 in
Frame Size
3.3
Wire Rope Length
5 1/4 in
Length
5 1/4 in

Details

Voltage
115V AC
Nameplate RPM
1,540/1,390
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100, 1/250
RPM Range
1,501-1,600
Motor Shaft Rotation
CW/CCW
Motor Design
Shaded Pole
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Motor Bearings
Sleeve
Number of Shafts
1
Motor Thermal Protection
Auto
Motor Sub Application
OEM Replacement
Motor Service Factor
1
Hz
60 Hz
Ins. Class
B
Full Load Amps
0.60/0.40 A
Duty
Continuous
Motor Shaft Design
Flat
Frame
3.3
Max. Ambient Temp.
40 Degrees C
Phase
Single
Motor Mounting Type
Band
Standards
CSA Certified, UL Recognized
No. of Speeds
1
Motor Application
HVAC/R
Application
HVAC/R
Item
OEM Replacement Motor
Capacitor Required
Capacitor Not Required
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Weight
4 lb
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Mounting
Lug
Bearing Type
Sleeve
Frequency
60 Hz
Full Load Current @ 60 Hz
0.60/0.40 A
Insulation Class
B
Motor Enclosure Type
Open Air Over
Shaft Design
Flat
Frame Material
Steel
Product Type
OEM Replacement Motor
Wattage
10 W
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp, 1/250 hp HP, Nameplate RPM 1,540/1,390 RPM, No. of Speeds 1, Voltage 115V AC, 0.60/0.40 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
