  6. Motor, 2 HP, 145T Frame, Three Phase

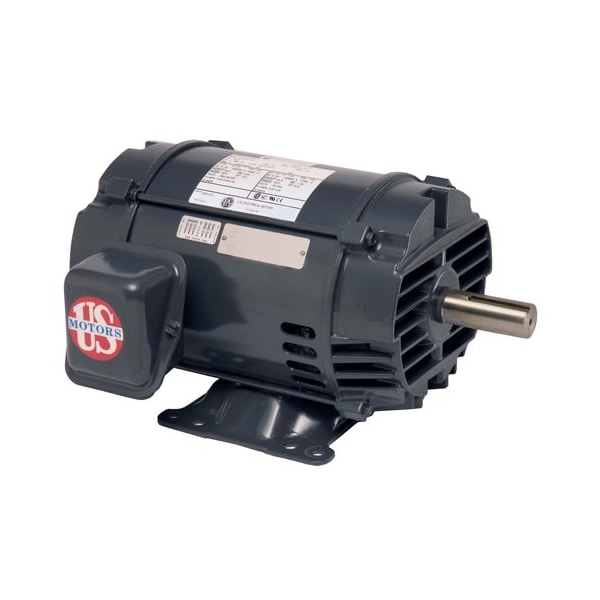

U.S. Motors Motor, 2 HP, 145T Frame, Three Phase D2P1D - main

Motor, 2 HP, 145T Frame, Three Phase

  • Mfr # D2P1D

  • Zoro # G1931950

product price:  $411.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
3515/3490/2885 rpm
Voltage
208-230/460
Frame
145T
Shaft Dia.
7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D2P1D
Zoro #
G1931950
UPC #
786382018252
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
12 13/16 in
Body Dia.
6.4 in
Length Less Shaft
10 9/16 in
Height
6 3/4 in
Body Diameter
6.4 in

Details

HP
2
Nameplate RPM
3515/3490/2885 rpm
Voltage
208-230/460
Frame
145T
Motor Shaft Rotation
CW/CCW
RPM Range
3,001-3,600
Item
Motor
Motor Mounting Position
Horizontal
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Rigid Base
Motor Design
Three-Phase
Motor Application
General Application
Motor Thermal Protection
None
Motor Enclosure Design
Open Drip Proof
Hz
60/50 Hz
Full Load Amps
5.5-5/2.5 A
No. of Speeds
1
Ins. Class
F
Motor Shaft Design
Keyed
Motor Sub Application
For pumps, fans, compressors, material handling, and other general purpose applications where contaminants are minimal., General Purpose
Motor Service Factor
1.15
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Phase
Three
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Nominal Efficiency
85.5 %
RPM @ 50Hz
2885 rpm
Weight
35 lb
CC Number
CC030A
Standards
CE, CSA
Usable @ 208V
Yes
HP @ 50Hz
2
Voltage @ 50Hz
190/380
Max. SF Amps
6.2-5.6/2.8 A
Full Load Amps @ 50Hz
3/6 A
Conduit Box Position
F1
Usable @ 200V
No
Conduit Box Location
Exterior
Inverter Rated
No
Motor Frame Material
Steel

Description

Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3515/3490/2885 rpm, Frame 145T, Voltage 208-230/460, 60/50 Hz Hz, Three Phase, Full Load Amps 5.5-5/2.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 3,001-3,600, CE, CSA
