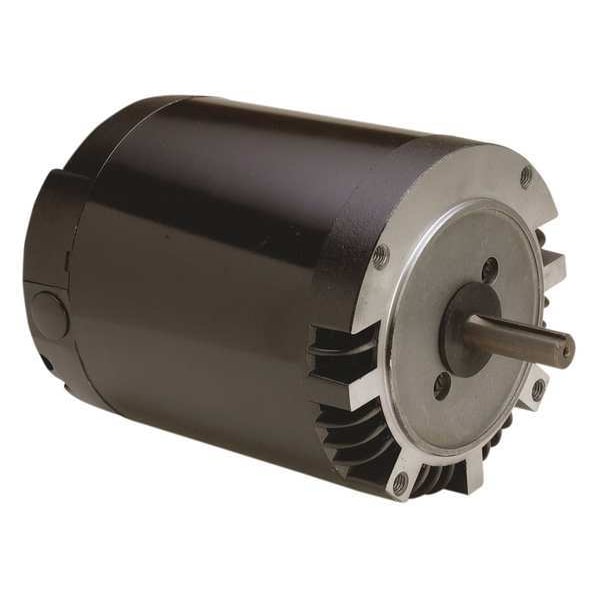

Motor, Split Ph, 1/3 HP, 850, 115V, 56CZ, ODP

CENTURY| Zoro #: G0741596| Mfr #: F276

$431.88 /ea

This item ships free. Details.Standard ground shipping.
Details:
Application: C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems
Shaft Length: 2-1/4"
Phase: 1
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0741596 Mfr #: F276
Application: C Face Vent, Designed for Use On Commercial and Industrial Ventilation SystemsShaft Length: 2-1/4"
Phase: 1Motor Application: HVAC/R
Capacitor Required: NoDuty: Continuous
Motor Thermal Protection: AutoMotor Shaft Rotation: CW/CCW
RPM Range: 0-1000Standards: UL Recognized, CSA Certified
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Length Less Shaft: 10-5/8"
Item: Direct Drive Blower MotorMotor Design: Split-Phase
Body Dia.: 6-1/2"Motor Enclosure Design: Open Dripproof
Frame: 56CZMotor Mounting Type: Face
Motor Mounting Position: All AngleFull Load Amps: 8.6
Hz: 60Motor Bearings: Ball
HP: 1/3Shaft Dia.: 5/8"
No. of Speeds: 1Ins. Class: B
Motor Shaft Design: KeyedMax. Ambient Temp.: 40 Degrees C
Motor Service Factor: 1.00Motor Sub Application: Direct Drive Fan/Blower
Voltage: 115Nameplate RPM: 850
Country of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Split-Phase Motor Type, Open Dripproof Enclosure, 1/3 HP, 850 Nameplate RPM, Voltage 115, 8.6 Full Load Amps, 60 Hz, 1 Phase, 56CZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Face, Bearings Ball, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 6-1/2 In., Length Less Shaft 10-5/8 In., Shaft Dia. 5/8 In., Shaft Length 2-1/4 In., Shaft Type Keyed
