Shop U.S. MOTORS

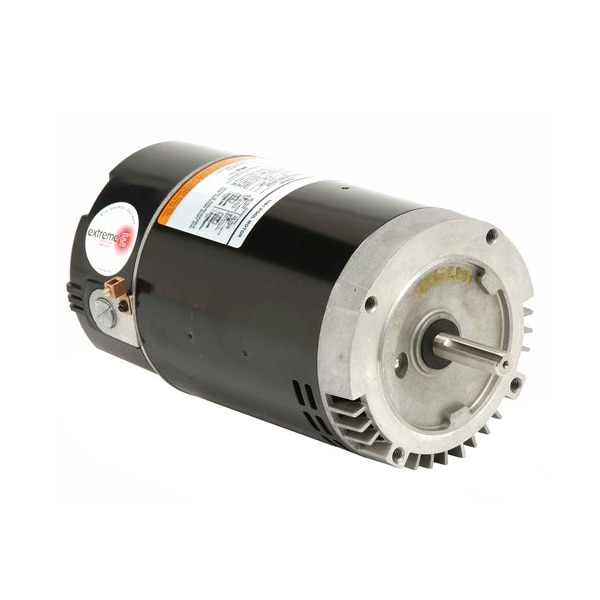

Motor, 2HP, 3450RPM, 230V, 60HZ, ODP

  • Mfr # EB124

  • Zoro # G0920009

product price:  $432.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
2
Nameplate RPM
3,450
Frame
56
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EB124
Zoro #
G0920009
UPC #
786382024901
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Bolt Circle Dia.
5 7/8 in
Length Less Shaft
11 3/4 in
Overall Length
13 13/16 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.5 in
Shaft Length
2 in
Frame Size
56

Details

Item
Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
2
Nameplate RPM
3,450
Frame
56
Motor Shaft Rotation
CCW
Voltage
230V AC
Motor Mounting Type
Face
Motor Sub Application
Pool and Spa Motor
Phase
Single
Motor Bearings
Ball
Motor Thermal Protection
Auto
Motor Service Factor
1.2
Ins. Class
B
Standards
CE, CSA, Energy's Efficiency Regulation 10 CFR Section 431 Subpart B, ISO 9001:2015, UL
Hz
60 Hz
Max. SF Amps
10.5
No. of Speeds
1
Max. Ambient Temp.
50 Degrees C
Weight
40 lb
Motor Shaft Design
Keyed
Product Type
Pump Motor
Nameplate Service Factor @ 60 Hz
1.2
Shaft Design
Keyed
Insulation Class
B
Number of Speeds
1
Application
Pump
Service Factor Current
10.5 A
Efficiency Rating
Standard Efficiency (IE1)
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Sub Application
Pool and Spa Pump
Manufacturers Warranty
350 mo
Ambient Temperature - Maximum
50 Degrees C

Description

Pump Motor, Bolt Circle Dia. 5 7/8 in, Frame 56, Hz 60 Hz, HP 2, Ins. Class B, Length Less Shaft 11 3/4 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 10.5, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof

Restrictions

This item has been restricted from sale in the following states: CA
