Shop MARATHON

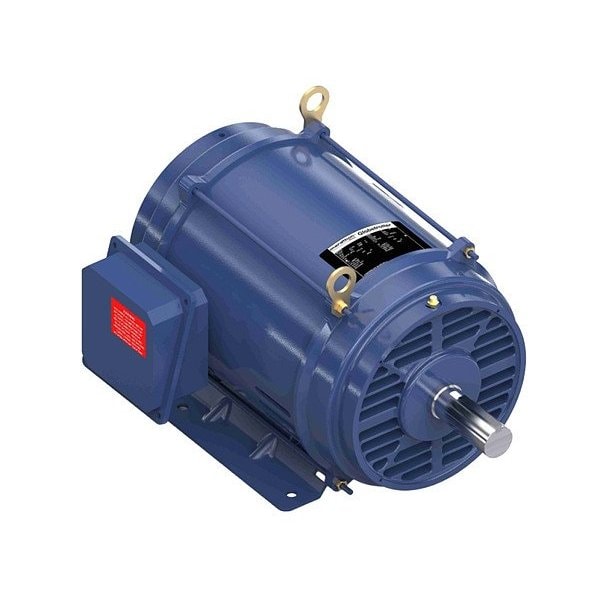

Three-Phase General Purpose Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1774 rpm Nameplate RPM

  • Mfr # 254TTDBD6026
  • Zoro # G6216551
product price:
$
1,549.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
15
Nameplate RPM
1774 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
37.5/18.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
254TTDBD6026
Zoro #
G6216551
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
15
Nameplate RPM
1774 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
37.5/18.8 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Weight
272 lb
Usable @ 200V
Not Usable at 200V
Inverter Rating
Inverter Rated
Application
General Purpose
Insulation Class
F
Bearing Type
Ball
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
37.5/18.8 A
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Voltage @ 50 Hz
208-230/460V AC
Product Type
General Purpose Motor
Frame Material
Steel
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,725 RPM
Number of Speeds
1
NEMA Design Class
B

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1774 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 37.5/18.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
