Shop U.S. MOTORS

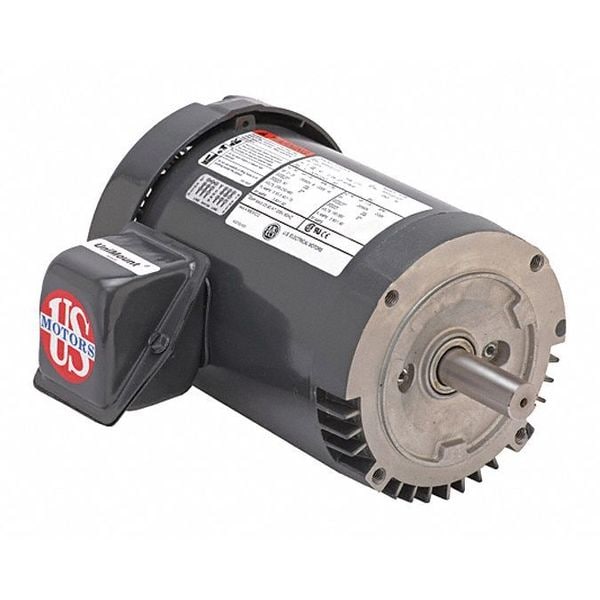

Motor, 3PH, 15HP, 3600,208-230/460V, TE JM

  • Mfr # UJ15P1DFM

  • Zoro # G0401981

product price:
$
1,504.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
15
Nameplate RPM
3,518
Frame
215
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UJ15P1DFM
Zoro #
G0401981
UPC #
786382114053
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 1/8 in
Overall Length
22 3/8 in
Height
10 1/4 in
Body Dia.
11.3 in
Bolt Circle Dia.
3/4 in
Shaft Dia.
7/8 in
Frame Size
215JM
Body Diameter
11.2 in
Shaft Length
4 1/4 in
Shaft Diameter
1 1/4 in
Wire Rope Length
22 3/8 in
Length
22 3/8 in

Details

Item
Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
15
Nameplate RPM
3,518
Frame
215
Motor Shaft Rotation
CW/CCW
Voltage
230/460V AC
Phase
Three
Motor Mounting Position
Horizontal
Full Load Amps
35.0/17.3
Motor Mounting Type
Rigid Base
Motor Frame Material
Aluminum
Motor Service Factor
1.25
Ins. Class
F
Nominal Efficiency
91 %
Hz
60/50
Motor Application
Centrifugal Pump
Max. SF Amps
44.0/22.2
Bearing Protection
Shaft Shields
Duty Cycle
Continuous
Part Winding Start Capable
No
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Weight
120 lb
Usable @ 208V
Usable at 208V
Conduit Box Position
F1
Regreasable Bearings
Regreasable Bearings
Motor Shaft Design
0.875
NEMA Design Class
B
Standards
CSA, ENERGY cURus
Application
Pump
Nameplate RPM @ 50 Hz
3,518/3,518/3,487/2,873/2,873 RPM
Efficiency Rating
Premium Efficiency (IE3)
Product Type
Pump Motor
Nameplate Voltage @ 50 Hz
230/460V AC
Nameplate Service Factor @ 60 Hz
1.25
Sub Application
Centrifugal Pump
Usable @ 200V
Not Usable at 200V
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
35.0/17.3.0 A
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Frame Material
Aluminum
Manufacturers Warranty
150 mo
Service Factor Current
44/22.2 A
Full Load Current @ 50 Hz
35.0/17.3 A
Nameplate Service Factor @ 50 Hz
1.25
Frequency
60/50 Hz
Inverter Rated
Inverter Rated
Shaft Design
Keyed
Bearing Lubrication Type
Regreasable Bearings
Mounting Position
Horizontal
Shaft Thread Type
JM

Description

Pump Motor, Bearing Protection Shaft Shields, Body Dia. 11.3 in, Bolt Circle Dia. 3/4 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 215, Hz 60/50, Full Load Amps 35.0/17.3, Height 10 1/4 in, HP 15, Ins. Class F, Inverter Rated Inverter Rated, Length Less Shaft 18 1/8 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 44.0/22.2, Motor Application Centrifugal Pump, Motor Design Three-Phase, Motor Efficiency Group Premium Efficient
