Shop U.S. MOTORS

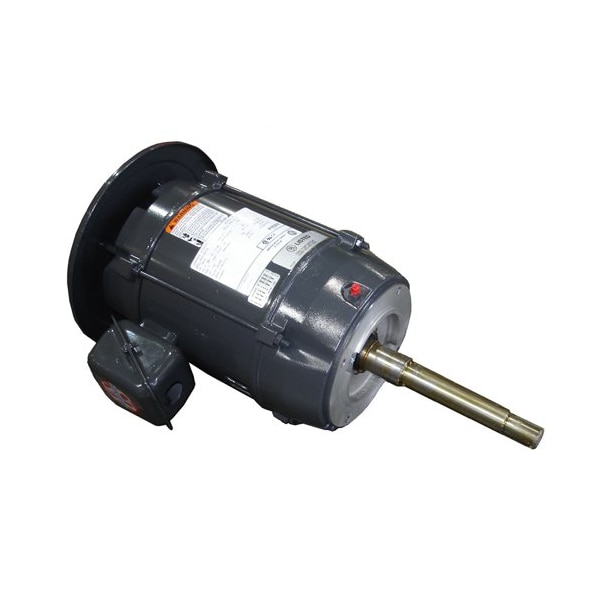

Motor, 3PH, 25HP, 208-230/460V, Fire Pump

  • Mfr # FF25E1DV

  • Zoro # G0402995

product price:
$
2,516.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
25
Nameplate RPM
3,535/2,935
Voltage
208-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FF25E1DV
Zoro #
G0402995
UPC #
786382096397
Country of Origin
Mexico

Dimensions

Shaft Length
8 1/8 in
Shaft Dia.
1 1/4 in
Overall Length
24 3/4 in
Length Less Shaft
16 5/8 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
14 in
Body Diameter
14 in
Frame Size
256
Shaft Diameter
1 1/4 in
Wire Rope Length
24 3/4 in
Length
24 3/4 in

Details

Item
Fire Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
25
Nameplate RPM
3,535/2,935
Voltage
208-230/460V AC
Frame
256JP
Ins. Class
F
Motor Service Factor
1.15
Nominal Efficiency
91 %
Motor Mounting Position
Horizontal
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Rigid Base
Motor Sub Application
Fire Pump
CC Number
CC030A
Motor Application
Pump
Full Load Amps
67.0-58.0/28.9 A
Standards
UL
Hz
60/50
Phase
Three
No. of Speeds
1
Motor Frame Material
Steel
Duty Cycle
Continuous
Regreasable Bearings
Regreasable Bearings
Part Winding Start Capable
Yes
Usable @ 208V
Usable at 208V
RPM @ 50Hz
3,535/2,935/3,510
Service Factor @ 50Hz
1.15
Max. SF Amps
79.0-68.0/34.0
Full Load Amps @ 50Hz
67.0-58.0/28.9
HP @ 50Hz
25
Voltage @ 50Hz
208-230/460V
NEMA Design
B
Bearing Protection
Double Shields
Weight
160 lb
Product Type
Pump Motor
Nameplate Service Factor @ 50 Hz
1.15
Shaft Design
Keyed
Application
Pump
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Usable @ 200V
Not Usable at 200V
Nameplate Voltage @ 50 Hz
208-230/460V AC
Frequency
60/50 Hz
Sub Application
Fire Pump
Mounting Position
Horizontal
Full Load Current @ 60 Hz
65.0 to 58.0/28.8 A
Service Factor Current
0 to 67/33 A
Full Load Current @ 50 Hz
65.0 to 58.0/28.8 A
Nameplate RPM @ 50 Hz
3,547/3,547/3,530/2,948/2,948 RPM
Bearing Lubrication Type
Regreasable Bearings
Manufacturers Warranty
165 mo
Number of Speeds
1
Insulation Class
F

Description

Fire Pump Motor, Bearing Protection Double Shields, Body Dia. 14 in, Bolt Circle Dia. 7 1/4 in, CC Number CC030A, Duty Cycle Continuous, Frame 256JP, Hz 60/50, Full Load Amps 67.0-58.0/28.9, Full Load Amps @ 50Hz 67.0-58.0/28.9, HP 25, HP @ 50Hz 25, Ins. Class F, Length Less Shaft 16 5/8 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 79.0-68.0/34.0, Motor Application Pump, Motor Design Three-Phase, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof
