Shop BALDOR-RELIANCE

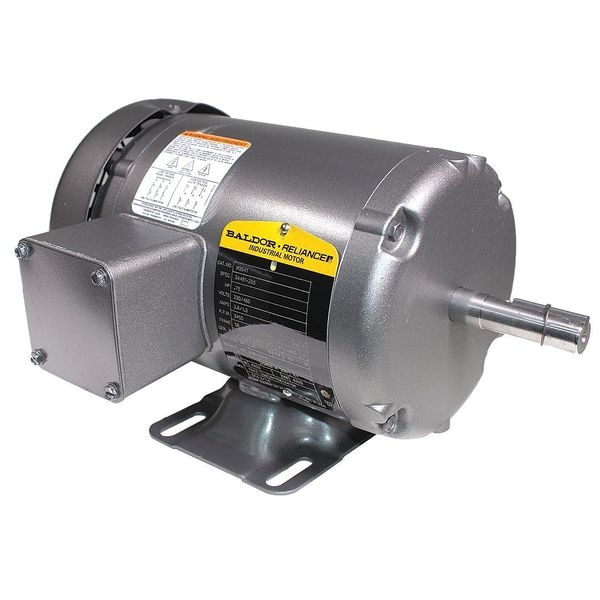

Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # M3541

  • Zoro # G8062686

product price:
$
540.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.6/1.3 A
Frame
56
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M3541
Zoro #
G8062686
UPC #
781568101957
Country of Origin
United States

Dimensions

Length Less Shaft
9 1/2 in
Overall Length
11 3/8 in
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Manufacturers Warranty Length
2 yr
Shaft Diameter
5/8 in
Frame Size
56
Wire Rope Length
11 3/8 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.6/1.3 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
74 %
Standards
CSA, UR
CC Number
CC031A
Includes
Gasketed Conduit Box
Footnotes
30
Motor Thermal Protection
None
Inverter Rated
No
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Usable at 208V
Weight
21 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
NEMA Design
B
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Full Load Current @ 60 Hz
2.6/1.3 A
Product Type
General Purpose Motor
NEMA Design Class
B
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.25
Bearing Type
Ball
Inverter Rating
Not Inverter Rated
Frequency
60 Hz
Nameplate RPM @ 50 Hz
1,480/1,485/1,470/1,475 RPM
Insulation Class
B
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
2 yr
Shaft Design
Keyed
Mounting Position
All Angle
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose

Description

The BALDOR-RELIANCE - M3541 is a General Purpose Motor, which falls under the category of 3-Phase AC Motors. This motor is engineered to facilitate the conversion of electrical energy into mechanical energy, making it intended for use in power transmission and pneumatics applications in various industrial and commercial settings. Its adaptable design enables potential usage across various sectors including manufacturing lines and HVAC systems.

Key Features of the BALDOR-RELIANCE - M3541 General Purpose Motor:

  • CC Number: The unique identifier CC031A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: The motor features a continuous duty cycle, suggesting that it may operate over an extended duration prior to requiring a rest period.
  • Frame: A frame size of 56 ensures compatibility with standard specifications for housing internal parts of the motor.
  • Full Load Amps: When operating at its peak, the motor is expected to draw a maximum current of 2.6/1.3 A which could be relevant when considering power supply requirements.
  • Green Certification or Other Recognition: NEMA Premium(R) Rated signifies that this motor meets certain environmental and energy efficiency standards.
  • Inverter Rated: This motor is not specifically engineered for powering via variable frequency drive yet continues to provide effective operation
Please note that some attributes such as "Capacitor Required" have been omitted from the description as they are labeled as "No".
