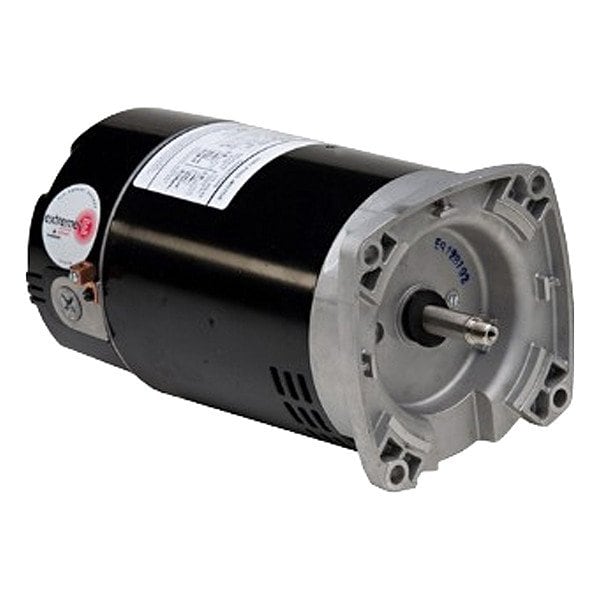

Motor, Rigid Base, 56Y
Mfr # K063ESA4788013J
Zoro # G723358768
product price:Â
$
412.99
/ea
Free Shipping & Returns
Key Features
Usable @ 208V
Not Usable at 208V
Application
General Purpose
Nameplate Voltage @ 50 Hz
190/380 V AC
Bearing Type
Ball
Insulation Class
B
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- K063ESA4788013J
- Zoro #
- G723358768
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 13 3/4 in
- Frame Size
- 56Y
Details
- Usable @ 208V
- Not Usable at 208V
- Application
- General Purpose
- Nameplate Voltage @ 50 Hz
- 190/380 V AC
- Bearing Type
- Ball
- Insulation Class
- B
- Standards
- CE, CSA, ISO 9001:2015, UL, United States Department of Energy
- Full Load Current @ 60 Hz
- 11.5 A
- Motor Enclosure Type
- Open Drip Proof
- Usable @ 200V
- Not Usable at 200V
- Nameplate Service Factor @ 60 Hz
- 1
- Ambient Temperature - Maximum
- 60 Degrees C
- Manufacturers Warranty
- 42 mo
- Product Type
- General Purpose Motor
- Nameplate RPM @ 50 Hz
- 1,760 RPM
- Shaft Design
- Threaded
- Motor Design
- Three-Phase
- Frequency
- 60 Hz
- Efficiency Rating
- NEMA Premium Efficiency
- Phase
- Three
- Item
- Motor
- Number of Speeds
- 1
Description
Motor, Three-Phase, Three Phase, Motor Thermal Protection Auto, CE, CSA, ISO 9001:2015, UL, United States Department of Energy
