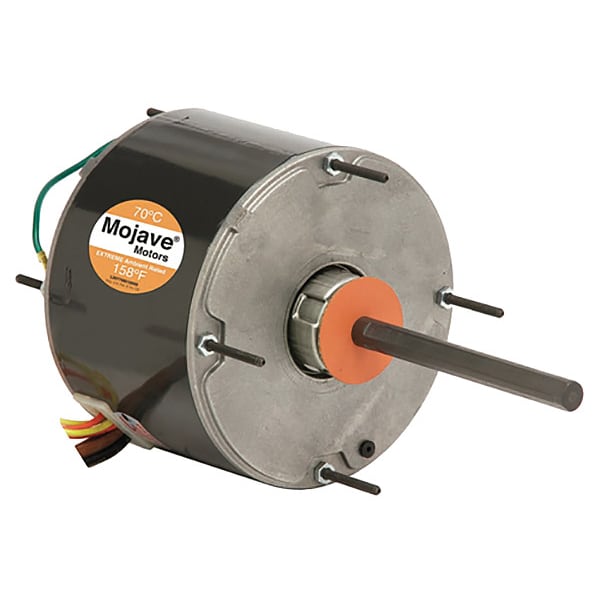

Permanent Split Capacitor Condenser Fan

  • Mfr # 3736
  • Zoro # G1941741
product price:
$
130.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1,075
Voltage
460V AC
Frame
48Y
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3736
Zoro #
G1941741
UPC #
786382003753
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
6 in
Overall Length
11 3/32 in
Body Dia.
5 5/8 in
Length Less Shaft
5 1/8 in
Lead Length
36 in
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Wire Rope Length
11 3/32 in
Length
11 3/32 in

Details

HP
1/4
Nameplate RPM
1,075
Voltage
460V AC
Frame
48Y
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Motor Thermal Protection
Auto
Full Load Amps
0.8 A
Motor Application
HVAC/R
Motor Design
Permanent Split Capacitor
Motor Bearings
Ball
Motor Mounting Type
Stud
Item
HVAC Motor
Motor Mounting Position
All Angle
Capacitor Required
Capacitor Not Included
Duty
Continuous
Ins. Class
B
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Design
Flat
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
No. of Speeds
1
Max. Ambient Temp.
60 Degrees C
Usable @ 200V
Not Usable at 200V
Features
Extended Studs, Hubless Lead End
Motor Frame Material
Aluminum
Weight
12 lb
Nominal Efficiency
59.3 %
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Includes
Drain Holes Both Ends
Extended Thru-Bolts
Yes
Frame Material
Aluminum
Ambient Temperature - Maximum
60 Degrees C
Mounting Position
All Angle
Sub Application
Condenser Fan
Shaft Design
Flat
Bearing Type
Ball
Full Load Current @ 60 Hz
0.80 A
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Air-Over
Drive Type
Direct Drive
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1

Description

HVAC Motor, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 0.80 A Full Load Amps, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Aluminum, Motor Mounting Position All Angle
