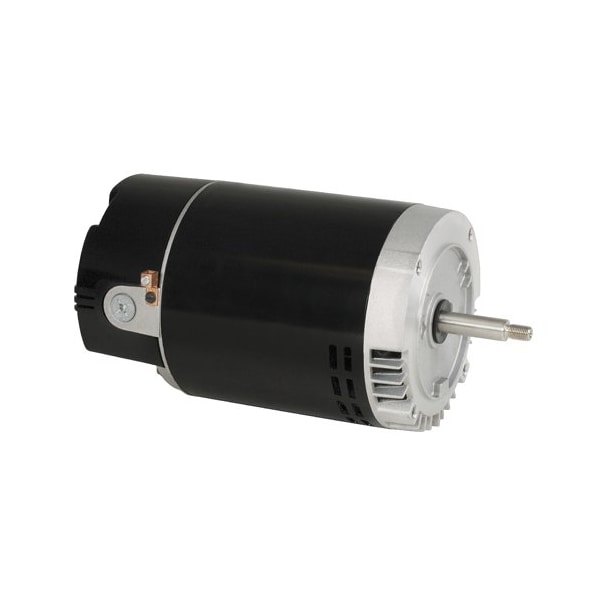

Permanent Split Capacitor Pump Motor, 3/4 HP, 56JZ Frame, 115/230V AC Voltage, 3,450 Nameplate RPM

  • Mfr # ASB668
  • Zoro # G7726683
product price:
$
285.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
3,450
Voltage
115V AC, 230V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.0/14.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ASB668
Zoro #
G7726683
UPC #
786382110741
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 3/4 in
Overall Length
15 1/8 in
Shaft Dia.
5/8 in
Shaft Length
3 7/8 in
Bolt Circle Dia.
5 7/8 in
Shaft Diameter
5/8 in
Wire Rope Length
15 1/8 in
Frame Size
56
Bolt Circle Diameter
5 7/8 in
Length
15 1/8 in

Details

Item
Pump Motor
HP
3/4
Nameplate RPM
3,450
Voltage
115V AC, 230V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.0/14.0 A
Frame
56JZ
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
Phase
Single
No. of Speeds
1
Motor Application
Remove
Motor Shaft Rotation
CCW
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Motor Mounting Position
Square Flange
Motor Shaft Design
Threaded
Standards
CE, CSA, Energy's Efficiency Regulation 10 CFR Section 431 Subpart B, ISO 9001:2015, UL
Shaft Material
Stainless Steel
Motor Thermal Protection
None
Max. SF Amps
6.0/12.0
Weight
23 lb
Duty Cycle
Continuous
Insulation Class
B
Frequency
60 Hz
Product Type
Pump Motor
Service Factor Current
6/12 A
Full Load Current @ 60 Hz
7.0/14.0 A
Bearing Type
Ball
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.5
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
Standard Efficiency (IE1)
Manufacturers Warranty
253 mo
Number of Speeds
1
Shaft Design
Threaded
Usable @ 200V
Not Usable at 200V
Application
Pump
Sub Application
Pool and Spa Pump
Ambient Temperature - Maximum
50 Degrees C

Description

Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Duty Cycle Continuous, Frame 56JZ, Hz 60 Hz, Full Load Amps 7.0/14.0, HP 3/4, Ins. Class B, Length Less Shaft 10 3/4 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 6.0/12.0, Motor Application Remove, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Enclosure Design Open Dripproof
