Shop U.S. MOTORS

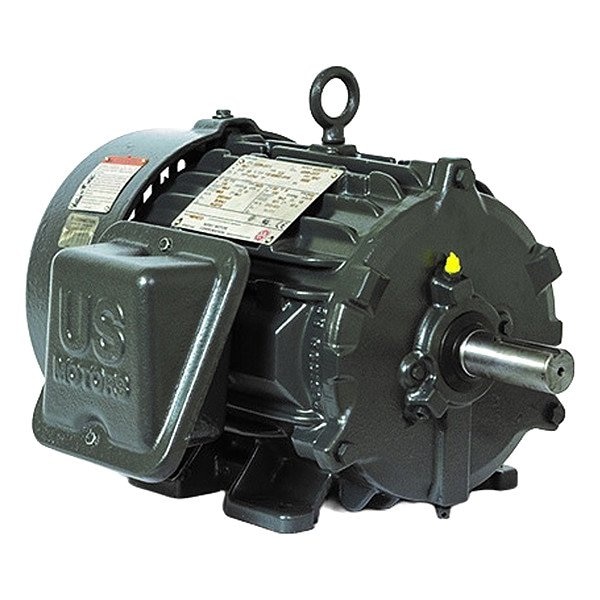

Three-Phase Motor, 5 HP, 184T Frame, 200V, 208V, 230V, 400V, 460V Voltage, 3,525 Nameplate RPM

  • Mfr # JF61
  • Zoro # G7728110
product price:
$
625.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

HP
5
Nameplate RPM
3,525
Voltage
200V, 208V, 230V, 400V, 460V
Motor Mounting Type
Rigid Base
Full Load Amps
12.3/6.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
JF61
Zoro #
G7728110
UPC #
786382125011
Country of Origin
Mexico
Item
Motor
HP
5
Nameplate RPM
3,525
Voltage
200V, 208V, 230V, 400V, 460V
Motor Mounting Type
Rigid Base
Full Load Amps
12.3/6.1 A
Frame
184T
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Hz
50/60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA Certified, ENERGY cURus
CC Number
CC030A
Motor Thermal Protection
None
Inverter Rated
Yes
NEMA Design
B
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
Weight
100 lb
RPM @ 50Hz
3,525/2,910
Usable @ 200V
Usable at 200V
Full Load Amps @ 50Hz
12.3/6.1 A
Removable Base
Regreasable
Voltage @ 50Hz
200V, 208V, 230V, 400V, 460V
HP @ 50Hz
5 hp
Usable @ 208V
Usable at 208V
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 50 Hz
1.15
Application
General Purpose
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Full Load Current @ 50 Hz
12.3/6.1 A
Full Load Current @ 60 Hz
12.3/6.1 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Horsepower @ 50 Hz
5 hp
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
208-230/460V AC
Number of Speeds
1
Bearing Lubrication Type
Regreasable
Frequency
60 Hz
Mounting Position
Horizontal
Nameplate RPM @ 50 Hz
1,450/1,455/1,460 RPM
Insulation Class
F
Product Type
General Purpose Motor

Description

Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3,525, Frame 184T, Voltage 200V, 208V, 230V, 400V, 460V, 60/50 Hz Hz, Three Phase, Full Load Amps 12.3/6.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, 3,001-3,600, CSA Certified, ENERGY cURus
