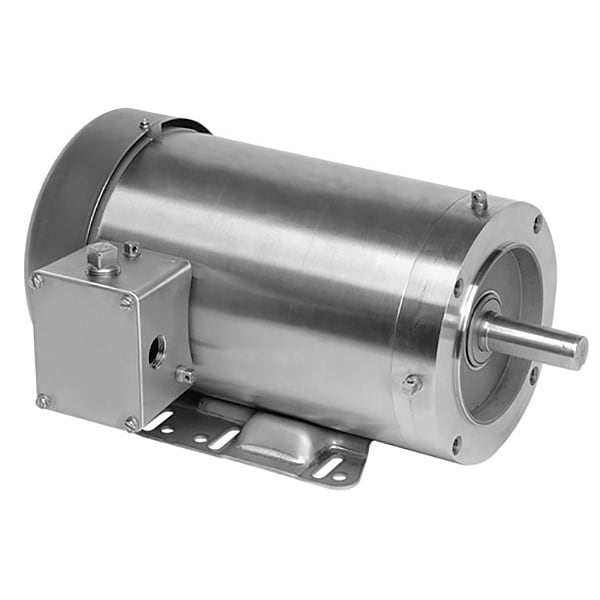

WashdownMotor, 1/2hp, 208-230/460VAC
Mfr # WDS12S1AHC
Zoro # G1930919
product price:Â $933.99
/ea
Free Shipping & Returns
Key Features
HP
1/2 hp
Nameplate RPM
3,525 RPM
Voltage
208-230/460V AC
Frame
56HC
Shaft Dia.
5/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
WDS12S1AHC
Zoro #
G1930919
UPC #
786382105891
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Overall Length
11 15/16 in
Length Less Shaft
10 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.6-1.5/0.8 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design None, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
