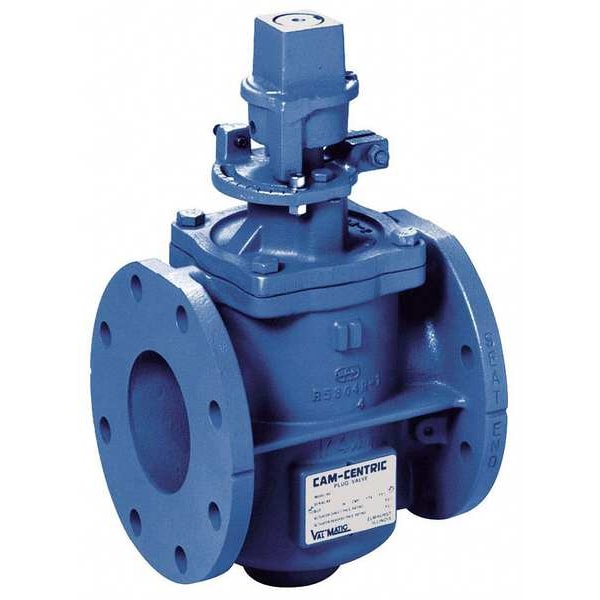

Plug Valve, 2 1/2 In, Nut Operated, CI
Mfr # 5825R-CB5Y-N
Zoro # G0850236
product price:Â
$
678.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
2 1/2"
Connection Type
Flanged
Valve Design
2-Way
Body Material
Cast Iron
Max. Pressure
175 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5825R-CB5Y-N
- Zoro #
- G0850236
- UPC #
- -
- Country of Origin
- United States
- Connection Type
- Flanged
- Valve Design
- 2-Way
- Body Material
- Cast Iron
- Item
- Plug Valve
- Max. Pressure
- 175 psi
- Coefficient of Volume
- 240
- Number of Bolts
- 4
- Standards
- ANSI Class
- Temp. Range
- -30 Degrees F to 150 Degrees F
- Seal Material
- Buna-n
- Handle Type
- No Handle
- For Media
- Wastewater
- Operating Temperature - Maximum
- 150 Degrees F
- Operating Temperature - Minimum
- -30 Degrees F
- Number of Flange Bolt Holes
- 4
- Plug Material
- Cast Iron ASTM A126
- Connection Type - Side 2
- Flange
- Maximum Pressure - Operating
- 175 psi
- Coefficient of Volume (Cv)
- 240
- Valve Flow Pattern
- 2-Way
- Connection Type - Side 1
- Flange
Description
Plug Valve, 2-Way, Body Material Cast Iron, Connection Type Flanged, Pipe Size 2 1/2 in, Max. Pressure 175 psi, Temp. Range -30 Degrees F to 150 Degrees F, Coefficient of Volume 240, Handle Type No Handle, Seal Material Buna-N, Overall Height 14 1/8 in, Overall Length 7.5 in, Number of Bolts 4, Square Operating Nut Size 2 in, Standards ANSI Class
