Shop VAL-MATIC

Valve Air Release and Vac, FNPT, 2 x 2, CI

  • Mfr # 20C02-6CT-C6B5Y

  • Zoro # G0416613

product price:  $1,045.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
2"
Outlet Size
2"
Body Material
Cast Iron
Connection Type
FNPT
Application
Clean Water
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
20C02-6CT-C6B5Y
Zoro #
G0416613
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
2"
Outlet Size
2"
Outlet Connection Size
2 in
Inlet Connection Size
2 in

Details

Item

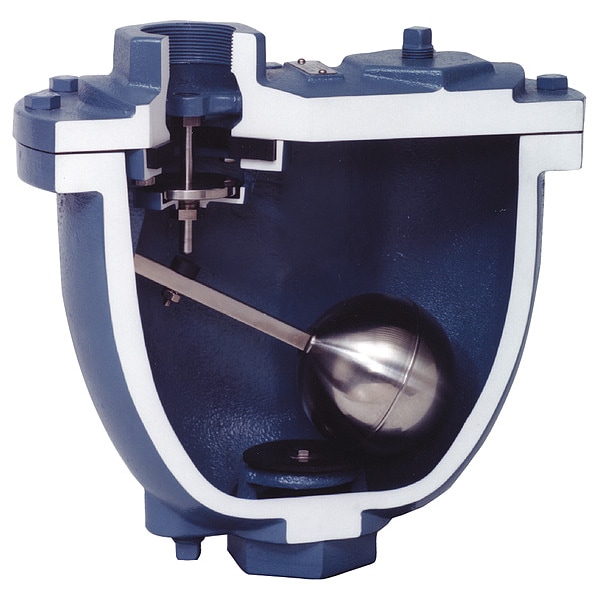

Air Release/Air Vacuum Valve
Body Material
Cast Iron
Connection Type
FNPT
Application
Clean Water
Min. Pressure
5 psi
Max. Pressure
300 psi
Max. Vent Capacity
25 scfm at 300 psi
Float Material
316 Stainless Steel
Vacuum Pressure
29 in Hg
Max. Fluid Temp.
250 Degrees F
Standards
AWWA C512, NSF 372, NSF 61
Vacuum Pressure - Maximum
29 in Hg
Inlet Connection Type
NPT
Fluid Temperature - Maximum
250 Degrees F
Vent Capacity - Maximum
25 scfm at 300 psi
Inlet Connection Gender
Female
Outlet Connection Type
NPT
Outlet Connection Gender
Female
Operating Pressure - Maximum
300 psi
Operating Pressure - Minimum
5 psi

Description

Air Release/Air Vacuum Valve, Inlet Size 2 in, Outlet Size 2 in, Application Clean Water, Min. Pressure 5 psi, Max. Pressure 300 psi, Max. Vent Capacity 25 scfm at 300 psi, Connection Type FNPT, Max. Fluid Temp. 250 Degrees F, Vacuum Pressure 29 in Hg, Body Material Cast Iron, Float Material 316 Stainless Steel, Standards AWWA C512, NSF 372, NSF 61
