Shop VALLEY CRAFT

Drum Truck, 800 lb. Ld Cap., Assembled

  • Mfr # F89484

  • Zoro # G3784702

product price:
$
5,198.99
/ea
Additional $355.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
60 1/2 in
Overall Width
24 1/2 in
Material
Steel
Color
Green
Load Capacity
800 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F89484
Zoro #
G3784702
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
60 1/2 in
Overall Width
24 1/2 in
Wheel Diameter
12 in
Front Wheel Dia.
12 in
Overall Depth
20 in
Rear Wheel Dia.
6 in
Rear Wheel Width
2 1/2 in
Front Wheel Width
3 1/2 in
Wheel Width
3 1/2
Nose Plate Thickness
1/2 in
For Maximum Container Height
37 1/2 in
Handle Height
60 1/2 in
Wheel Dia.
12 in
Overall HxWxD
60 1/2 in x 24 1/2 in x 20 in
For Maximum Container Diameter
24 in
Axle Dia.
3/4 in

Details

Material
Steel
Color
Green
Load Capacity
800 lb
Item
Powered Steel-Frame Drum Hand Truck
Wheel Type
Semi-Pneumatic
Handle Type
Dual
Assembled
Yes
Hand Truck Handle Type
Dual Handle
Assembled/Unassembled
Assembled
Finish
Powder Coated
Wheel Material
Pneumatic
Wheel Bearings
Ball Bearing
For Use With
Polyethylene Drums, Steel Drums
Drum Capacity
30 gal; 55 gal
Includes
Foot Lever Assist
Charge Time
7 hr
Nose Plate Type
Prong
Weight
175 lb
Frame Finish
Powder Coated
Charger Type
On-Board
Charger Voltage
120 V AC
For Surface Type
Concrete
Rim Catch Type
Spring Loaded
Power Connection Type
Plug In
Caster/Wheel Configuration
(4) Axle-Mounted
Chime Adjustment Range
38 3/8 in to 23 5/8 in
Includes Stair Climber
Without Stair Climber
Frame Material
Steel
Wheel Type/Material
Semipneumatic Rubber
Frame Type
Rounded Back
For Container Material
Plastic, Steel
Run Time
30 min
Number of Rim Catches
1
Nose Plate Material
Steel
Number of Batteries
1
Includes Foot Assist
With Foot Assist
Securing Mechanism
Chime
Battery Type
Lead Acid
Frame Gauge
15 ga
Wheel/Tread Material
Rubber
Brake Type
Hand Brake
Operation
Electric
Nose Plate Profile
Beveled
Non-Marking Axle-Mounted Wheels
No
Hub Position
Center Mount
Features
Full Function Forward and Reverse Travel with Audible Reverse Warning
Battery Amp Hours
18 Ah
For Container Capacity
30 gal, 55 gal
For Cntnr Cap
30 gal, 55 gal

Description

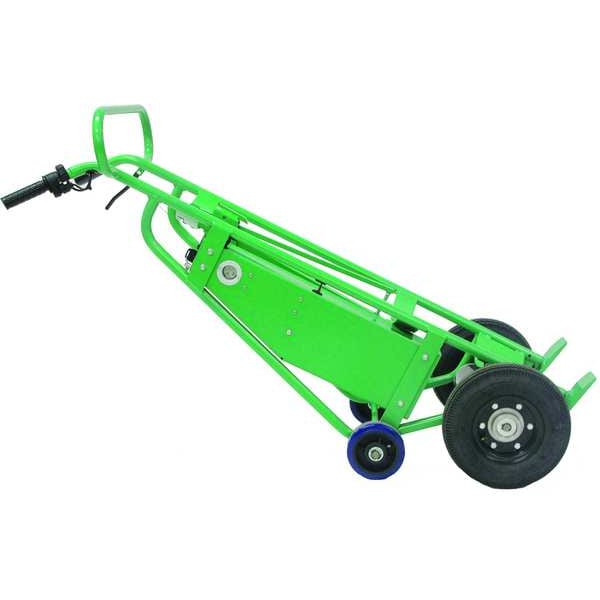

The Valley Craft F89484 Powered Steel-Frame Drum Hand Truck is an assembled, electric hand truck with an 800 lb load capacity for 30- and 55-gallon polyethylene or steel drums. It features a steel rounded-back frame (15 ga) with a powder-coated finish, an electric drive powered by a single 18 Ah lead-acid battery with an on-board 120 V AC charger, and full forward/reverse travel with an audible reverse warning.

Key Features:

  • Item: Powered steel-frame drum hand truck; assembled
  • Load capacity: 800 lb
  • For container capacity/material: 30 gal and 55 gal; polyethylene and steel drums
  • Maximum container size: 24 in diameter, 37 1/2 in height
  • Operation/power: Electric; plug-in power connection; 1 lead-acid battery (18 Ah)
  • Charger: On-board 120 V AC; charge time 7 hours; run time approximately 30 minutes
  • Drive features: Full function forward and reverse travel; audible reverse warning
  • Securing/handling: Chime securing mechanism (adjustable 38 3/8 in to 23 5/8 in); spring-loaded rim catch (1)
  • Brake: Hand brake
  • Frame: Steel, rounded back, 15 ga; powder-coated finish
  • Nose plate: Steel prong, beveled profile, 1/2 in thick
  • Handle: Dual handle, 60 1/2 in height
  • Wheels/casters: (4) axle-mounted configuration; front wheels 12 in dia x 3 1/2 in width, rear wheels 6 in dia x 2 1/2 in width
  • Wheel construction: Semi-pneumatic rubber tread, ball bearings, center-mount hubs
  • Includes: Foot lever assist
  • Dimensions/weight: Overall HxWxD 60 1/2 in x 24 1/2 in x 20 in; overall height 60 1/2 in; overall width 24 1/2 in; overall depth 20 in; weight 175 lb
  • Recommended surface type: Use only on concrete or other surfaces that provide equivalent load support and traction
