Shop VALTERRA

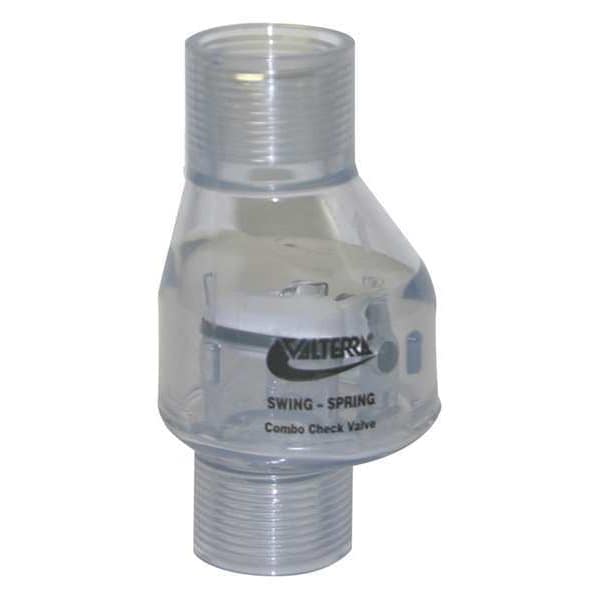

3/4" FPT PVC Spring Swing Check Valve

  • Mfr # 200-C07F

  • Zoro # G2684565

product price:
$
7.89
/ea

Key Features

Pipe Size
3/4"
Connection Type
FPT x FPT
Body Material
PVC
Max. Steam Pressure - Valves
Not Rated
Max. Pressure
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
200-C07F
Zoro #
G2684565
UPC #
019079700476
Country of Origin
China
Connection Type
FPT x FPT
Body Material
PVC
Max. Steam Pressure - Valves
Not Rated
Max. Pressure
150 psi
Seal Material - Check Valves
NBR
Flow Design
Single
Item - Check Valves
Check Valve
Mechanism and Body Design
Inline Spring Swing
Body Material - Valves
PVC
Cracking Pressure
0.5 psi
Max. Temp.
73 Degrees F
Connection Type - Check Valves
FNPT x FNPT
Seal Material
Buna-N
Max. Water Pressure - Valves
150 psi
Max. Water Pressure
150 psi
Min. Temp. - Valves
35 Degrees F
Spring Material - Check Valves
Stainless Steel
Seat Material - Check Valves
PVC
Mounting Position
Any
Application - Valves
General Purpose
Cracking Pressure - Check Valves
0.5 psi
Flow - Valves
100 gpm
Spring Material
316 Stainless Steel
Full Flow - Valves
No
Max. Temp. - Valves
73 Degrees F
Seat Material
PVC
Material of Construction
PVC
Sub-Category
PVC
Item
Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Flow
100 gpm
Mounting Orientation
Horizontal, Vertical
Maximum Pressure - Operating
150 psi
Check Mechanism Material
316 Stainless Steel
Connection Gender - Side 2
Female
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
35 Degrees F
Connection Gender - Side 1
Female
Connection Type - Side 2
IPS
Connection Type - Side 1
IPS
For Media
Water
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
73 Degrees F
Silent Check
Standard
Valve Body Style
Inline
Maximum Pressure - Steam
Not Rated
Check Mechanism
Swing

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring Swing, Body Material - Valves PVC, Pipe or Tube Size 3/4 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material NBR, Max. Temp. - Valves 73 Degrees F, Min. Temp. - Valves 35 Degrees F, Max. Water Pressure - Valves 150 psi, Max. Steam Pressure - Valves Not Rated, Seat Material PVC, Spring Material Stainless Steel, Flow - Valves 100 gpm
