443inlbs Quarter Turn Electric Actuator, Open Close Service, ISO F05 & F07 Mount, 24VAC Voltage (Discontinued)
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
1005-XL-24VAC
Zoro #
G304946445
UPC #
-
Country of Origin
United States
Details
Voltage
24VAC
Torque
443inlbs
Description

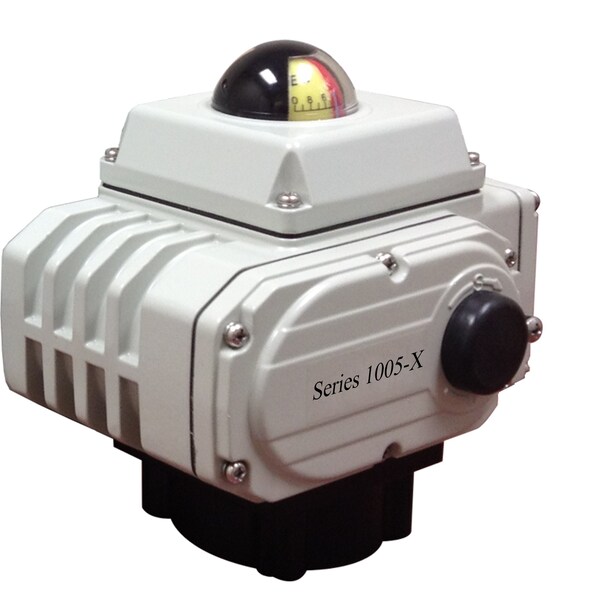

Model 1005-XL-24VAC quarter turn electric valve actuator. 24VAC power. Open and close service, NEMA 4X enclosure rating, 3-wire control. ISO F05 & F07 mounts. 443inlbs (50Nm) torque. Duty cycle of 80%. Run time of 21 seconds. Motor power of 10W. Run current of 1.56A, max current of 0.34A. High vsiibility position indicator. Manual override provision. Two SPDT limit feedback switches. Aluminum body.
