Vee Gee

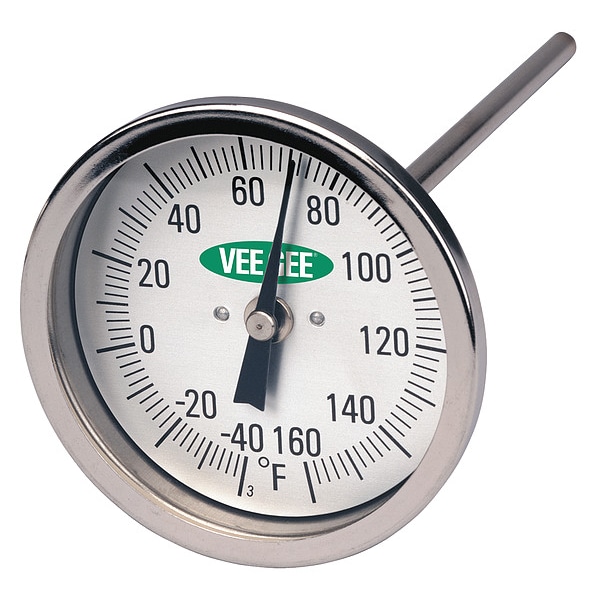

Soil Dial Thermometer, 1/4" dia. Stem

Vee Gee Soil Dial Thermometer, 1/4" dia. Stem 82160-12
Hover or click to zoom Tap to zoom
$30.84
  • Item: Soil Dial Thermometer
  • Sensing Element: Bimetal
  • Dial Size: 3 in
  • Connection Size: 1/2 in NPT
  • Connection Location: Back
  • Stem Length: 12 in
  • Temp. Range (F): 104 Degrees to 160 Degrees
  • Fits Pipe Size: 1/2 in
See full product details
Orders over $75 ship free.

Total: $30.84

Vee Gee #82160-12 Specifications

  • Item: Soil Dial Thermometer
  • Sensing Element: Bimetal
  • Dial Size: 3 in
  • Connection Size: 1/2 in NPT
  • Connection Location: Back
  • Stem Length: 12 in
  • Temp. Range (F): 104 Degrees to 160 Degrees
  • Fits Pipe Size: 1/2 in
  • Power Required: No
  • Application: Asphalt/Concrete Testing, Food and Beverage Quality Control, General Lab Use, Soil Testing
  • Temp. Range (C): 40 Degrees to 71 Degrees
  • Stem Material: 304 Stainless Steel
  • Window Material: Glass
  • Accuracy: +/-2 Degrees F
  • Case Material: 304 Stainless Steel
  • Stem Dia.: 1/4 in
  • Manufacturers Warranty Length: 1 yr
  • Thread Size: 0.5 in
  • Includes Thermowell: No
  • Long Reach: Yes
  • Scale: Fahrenheit
  • Glow-in-the-Dark: No
  • Shatterproof: No
  • Lead Free: No
  • Temperature Graduations: 2 Degrees F
  • Thread Gender: Male
  • Thread Type: NPT
  • Tip Diameter: 0.0625 in
  • Maximum Temperature F: 160 Degrees F
  • Housing Material: 304 Stainless Steel
  • Dial Diameter: 3 in
  • Includes NIST-Traceable Certificate: No
  • Temperature Range: -40 Degrees to 160 Degrees F
  • Reduced Tip: Yes
  • Minimum Temperature F: -40 Degrees F
  • Stem Diameter: 1/4 in
  • Corrosion Resistant: No
  • Functions: Manual Calibration
  • Vibration Resistant: No
  • Lens Material: Glass
  • Manufacturer Warranty Length: 1 yr
  • Process Connection: 1/2 in NPT Male
  • Fitting Type: Threaded
  • Construction: 304 Stainless Steel Housing, 304 Stainless Steel Stem and Glass Lens
  • Scale Type: Dial
  • Minimum Temperature °F: -40 Degrees F
  • Maximum Temperature °F: 160 Degrees F
  • Country of Origin (subject to change): China

Description

Soil Dial Thermometer, Application Asphalt/Concrete Testing, Food and Beverage Quality Control, General Lab Use, Soil Testing, -40 Degrees to 160 Degrees F, Stem Length 12 in, Dial Diameter 3 in, 1/2 in NPT Male, 304 Stainless Steel Housing, 304 Stainless Steel Stem and Glass Lens, Back, Fahrenheit
