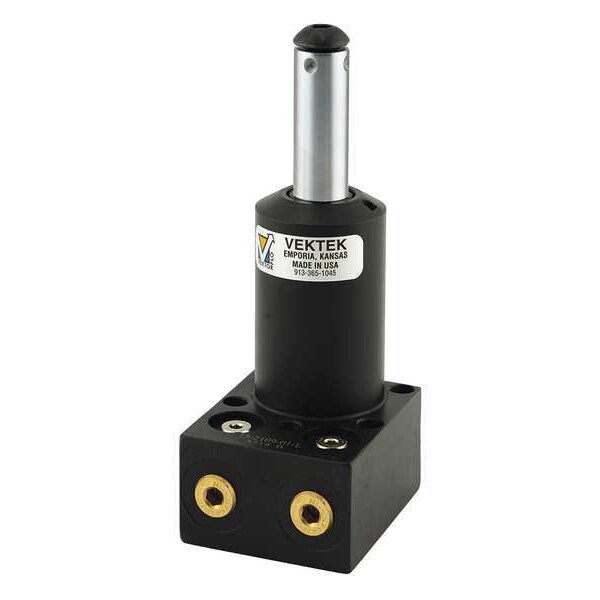

Hyd. Clamp, Swing, Bottom Flange, 1100 lb.
Mfr # 15-2109-04-L
Zoro # G9244487
product price: $563.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Clamping Force
1,100 lbf
Total Stroke
0.79 in
Clamping Stroke
0.31 in
Effective Area Clamped
0.295 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
15-2109-04-L
Zoro #
G9244487
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
6"
Extended Height
5.7 in
Mounting Hole Dia.
0.28 in
Outside Dia.
1.49 in
Port Size
#4 SAE
Details
Item
Swing Clamp Hydraulic Cylinders
Single Acting/Double Acting
Single Acting
Clamping Force
1,100 lbf
Total Stroke
0.79 in
Clamping Stroke
0.31 in
Effective Area Clamped
0.295 sq in
Turns
Left
Max. Pressure
5,000 psi
Type
Swing
Function
Single Acting
Swing Angle
90 Degrees
Material of Construction
Steel
Oil Capacity Clamped
0.233 cu in
Stroke
0.31" Verticle/0.79" Total
Body Style
Bottom Flange
Max. Oil Flow
1.5 gpm
Number of Bolts
5
Pressure Range
750 to 5000 psi
Product Type
Swing Clamp Hydraulic Cylinders
Description
Swing Clamp Hydraulic Cylinders, Single Acting/Double Acting Single Acting, Turns Left, Clamping Force 1,100 lbf, Total Stroke 0.79 in, Effective Area Clamped 0.295 sq in, Clamping Stroke 0.31 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 0.233 cu in, Max. Oil Flow 1.5 gpm, Pressure Range 750 to 5000 psi, Extended Height 5.7 in, Outside Dia. 1.49 in, Mounting Hole Dia. 0.28 in, Number of Bolts 5
