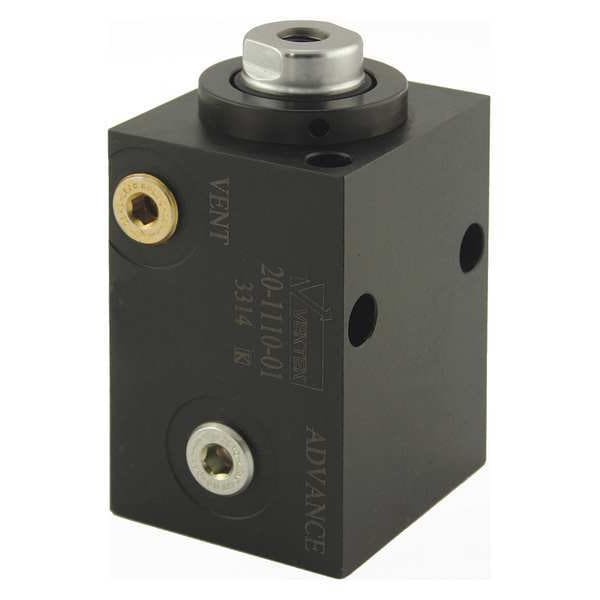

Hydraulic Cylinder, Single, Blck, 1-3/4x2in
Mfr # 20-1110-01
Zoro # G8914726
product price: $345.99
/ea
Free Shipping & Returns
Key Features
Finish
Black Hard Coat
Temp. Range
40 Degrees to 160 Degrees F
Piston Material
Steel
Plunger Thread Size
5/16"-18
Stroke Length
1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
20-1110-01
Zoro #
G8914726
UPC #
-
Country of Origin
United States
Dimensions
Plunger Thread Size
5/16"-18
Stroke Length
1 in
Extended Height
4.3 in
Center Hole Dia.
5/16 in
Plunger Dia.
0.81 in
Retracted Height
3.3 in
Details
Finish
Black Hard Coat
Item
Block Body Hydraulic Cylinder
Temp. Range
40 Degrees to 160 Degrees F
Piston Material
Steel
Oil Capacity
0.785 cu in
Effective Area
0.79 sq in
Capacity @ Operating Pressure
3,900 lbf
Series
20-11
Operating Pressure
5,000 psi
Nominal Capacity
3,900 lbf
Max. Pressure
5,000 psi
Cylinder Type
Block Body
Single Acting/Double Acting
Single Acting
Body Material
Steel
Description
Block Body Hydraulic Cylinder, Single Acting, Block Body, Steel, Nominal Capacity 3,900 lbf, Stroke Length 1 in, Effective Area 0.79 sq in, Max. Pressure 5,000 psi, Oil Capacity 0.785 cu in, Retracted Height 3.3 in, Extended Height 4.3 in, Capacity @ Operating Pressure 3,900 lbf, Operating Pressure 5,000 psi, Series 20-11, Plunger Dia. 0.81 in, Plunger Thread Size 5/16 In.-18, Center Hole Dia. 5/16 in
