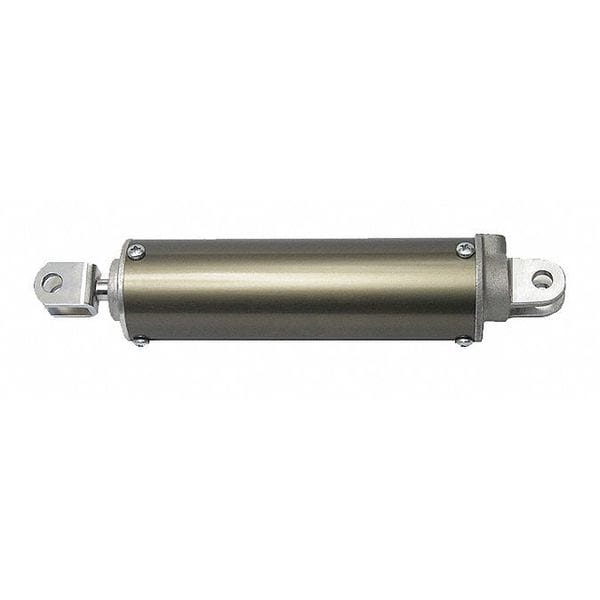

Air Cylinder, 2 1/2 in Bore, 6 3/4 in Stroke, Single Acting, Aluminum .
- Mfr # 100101
- Zoro # G5246236
product price:Â
$
74.55
/ea
Key Features
Cylinder Action
Single Acting
Bore Dia.
2 1/2 in
Max. Pressure
100 psi
Body Material
Aluminum
Rod Dia.
0.625 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Dimensions
- Bore Dia.
- 2 1/2 in
- Rod Dia.
- 0.625 in
- Overall Length
- 12.64 in Retracted
- Pivot Hole Dia.
- 0.531 in
- Port Size
- 1/4 in FTP
- Dimension Cb
- 1.12 in
- Air Cylinder Bore Dia.
- 2 1/2 in
- Dimension Cd
- 0.531
- Stroke Length
- 6 3/4 in
- Rod Diameter
- 5/8 in
- Inlet Size
- 1/4"
- Retracted Length
- 12 5/8 in
- Extended Length
- 19 7/16 in
- Bore Diameter
- 2 1/2 in
- Overall Width
- 2 1/2 in
- Rod Thread Size
- 5/8"-18
- Overall Height
- 2 1/2 in
Description
Air Cylinder, Body Material Aluminum, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Clevis, Bore Diameter 2 1/2 in, Cushion Type None, Stroke Length 6 3/4 in, Inlet Size 1/4 In., Air Inlet Type NPT, Spring Retraction Force 386 lb, Cylinder Action Single Acting, Number of Rods Single Rod, System of Measurement Inch, Mounting Location Rear, Tie Rod Material Metal, Overall Width 2 1/2 in, Overall Height 2 1/2 in, Inlet Gender Female
