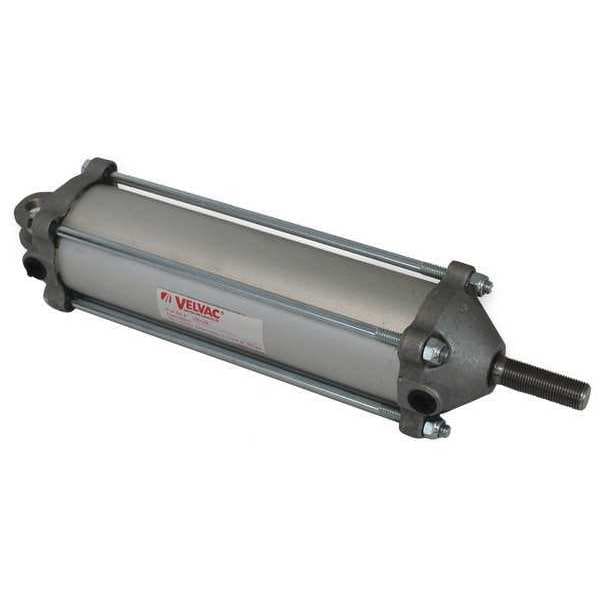

Air Cylinder, 2 1/2 in Bore, 8 in Stroke, Double Acting, Aluminum .
- Mfr # 100124
- Zoro # G5246211
product price:Â
$
149.99
/ea
Free Shipping & Returns
Key Features
Cylinder Action
Double Acting
Bore Dia.
2 1/2 in
Max. Pressure
100 psi
Body Material
Aluminum
Rod Dia.
0.625 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 100124
- Zoro #
- G5246211
- UPC #
- 728974026498
- Country of Origin
- China
Dimensions
- Bore Dia.
- 2 1/2 in
- Rod Dia.
- 0.625 in
- Overall Length
- 13.89 in Retracted
- Rod Thread Length
- 1 3/4 in
- Pivot Hole Dia.
- 0.5 in
- Port Size
- 1/4-18NPTF
- Dimension A
- 1 3/4
- Dimension Cd
- 0.5
- Air Cylinder Bore Dia.
- 2 1/2 in
- Rod Thread Size
- 5/8"-18
- Dimension Kk
- 5/8-18 UNF-2A
- Bore Diameter
- 2 1/2 in
- Retracted Length
- 13 7/8 in
- Inlet Size
- 1/4"
- Extended Length
- 21 7/8 in
- Rod Diameter
- 5/8 in
- Stroke Length
- 8 in
- Overall Width
- 2 1/2 in
- Overall Height
- 2 1/2 in
Description
Air Cylinder, Body Material Aluminum, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Clevis, Bore Diameter 2 1/2 in, Cushion Type None, Stroke Length 8 in, Inlet Size 1/4 In., Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Mounting Location Rear, Tie Rod Material Metal, Overall Width 2 1/2 in, Overall Height 2 1/2 in, Inlet Gender Female, Includes Mounting Kit
