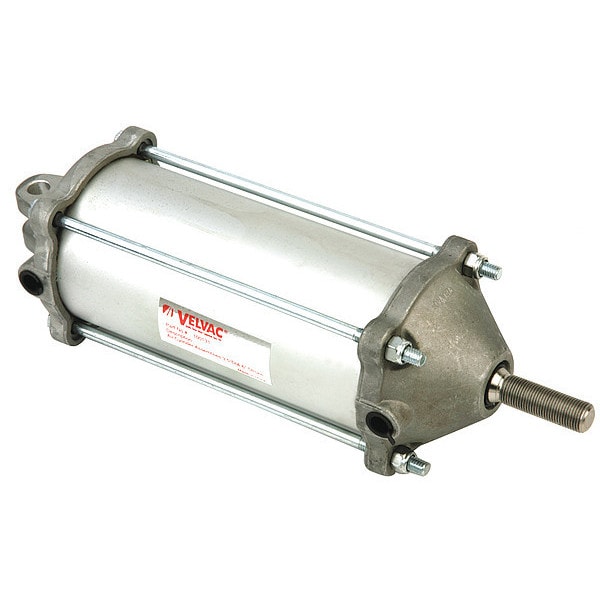

Air Cylinder, 3 1/2 in Bore, 6 17/25 in Stroke, Double Acting, Aluminum .
Mfr # 100131
Zoro # G5246245
product price: $205.99
/ea
Free Shipping & Returns
Key Features
Cylinder Action
Double Acting
Bore Dia.
3 1/2 in
Max. Pressure
100 psi
Body Material
Aluminum
Rod Dia.
0.625 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
100131
Zoro #
G5246245
UPC #
728974026528
Country of Origin
China
Dimensions
Bore Dia.
3 1/2 in
Rod Dia.
0.625 in
Overall Length
13.6 in Retracted
Rod Thread Length
1 3/4 in
Pivot Hole Dia.
0.5 in
Port Size
1/4"-18 NPTF
Dimension A
1 3/4
Dimension Kk
5/8-18 UNF-2A
Air Cylinder Bore Dia.
3 1/2 in
Dimension Cd
0.5
Rod Thread Size
5/8"-18
Retracted Length
13 5/8 in
Rod Diameter
5/8 in
Stroke Length
6 11/16 in
Extended Length
20 1/4 in
Bore Diameter
3 1/2 in
Inlet Size
1/4 in
Description
Air Cylinder, Body Material Aluminum, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Clevis, Bore Diameter 3 1/2 in, Cushion Type None, Stroke Length 6 11/16 in, Inlet Size 1/4 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, System of Measurement Inch, Tie Rod Material Metal, Inlet Gender Female, Maximum Operating Pressure 120 psi, Maximum Operating Temperature 185 Degrees F
