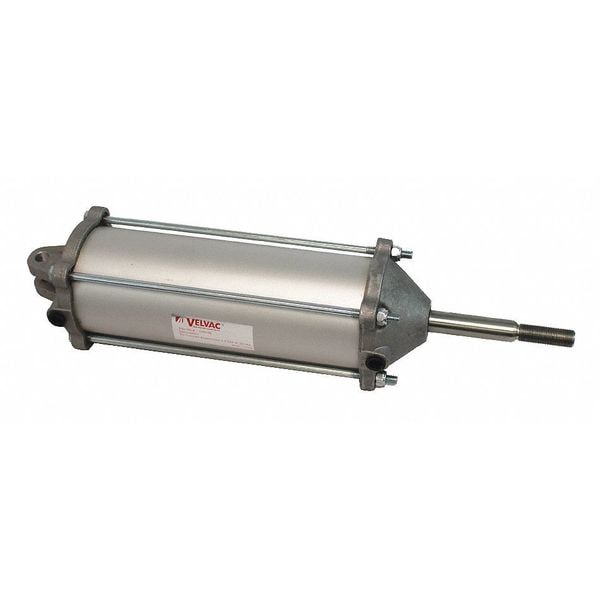

Air Cylinder, 3 1/2 in Bore, 8 17/25 in Stroke, Double Acting, Aluminum .
Mfr # 100137
Zoro # G5246272
product price: $233.99
/ea
Free Shipping & Returns
Key Features
Cylinder Action
Double Acting
Bore Dia.
3 1/2 in
Max. Pressure
100 psi
Body Material
Aluminum
Rod Dia.
0.625 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
100137
Zoro #
G5246272
UPC #
728974026597
Country of Origin
China
Dimensions
Bore Dia.
3 1/2 in
Rod Dia.
0.625 in
Overall Length
15.6 in Retracted
Rod Thread Length
1 3/4 in
Pivot Hole Dia.
0.5 in
Port Size
1/4-18NPTF
Rod Thread Size
5/8"-18
Dimension A
1 3/4
Dimension Cd
0.5
Air Cylinder Bore Dia.
3 1/2 in
Dimension Kk
5/8-18 UNF-2A
Extended Length
24 1/4 in
Inlet Size
1/4 in
Retracted Length
15 5/8 in
Rod Diameter
5/8 in
Stroke Length
8 11/16 in
Bore Diameter
3 1/2 in
Description
Air Cylinder, Body Material Aluminum, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Clevis, Bore Diameter 3 1/2 in, Cushion Type None, Stroke Length 8 11/16 in, Inlet Size 1/4 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, System of Measurement Inch, Tie Rod Material Metal, Inlet Gender Female, Maximum Operating Pressure 120 psi, Maximum Operating Temperature 185 Degrees F
