Shop VELVAC

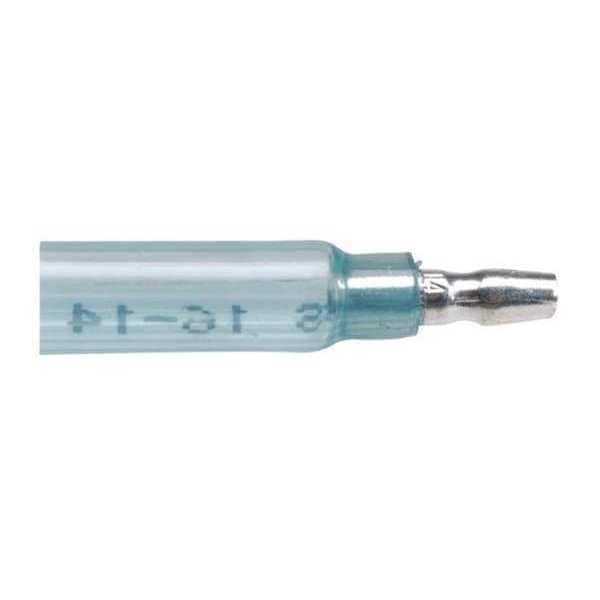

Male Bullet Disconnect, Blu, 16-14AWG, PK10

  • Mfr # 055104-10

  • Zoro # G5367521

product price:  $9.85
/pk 10, $0.99/ea

Key Features

Insulation
Full
Insulation Color
Blue
Wire Range
16 to 14 AWG
Connection Type
Crimp
Insulation Type
Heat Shrink
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
055104-10
Zoro #
G5367521
UPC #
728974160710
Country of Origin
United States

Dimensions

Tab Size
0.156 in
Overall Length
1.48 in
Barrel Inside Dia.
0.097 in
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Tab Thickness
0.032 in
Barrel Inside Diameter
0.097 in
Tab Width
0.156 in
Wire Rope Length
1.48 in

Details

Item
Wire Disconnect
Insulation
Full
Insulation Color
Blue
Wire Range
16 to 14 AWG
Connection Type
Crimp
Insulation Type
Heat Shrink
Seam
Brazed
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Connection Material
Copper
Standards
UL Listed
Terminal Type
Tab
Insulation Material
Nylon with Heat Shrink
Barrel Style
Funnel Entry
Maximum Operating Temperature
221 Degrees F
Minimum Operating Temperature
-40 Degrees F
RoHS Compliant
Yes
Special Features
Clear Seal Tubing Features Increase Clarity, Better Abrasion Resistance, Greater Tensile Strength, 50% More Dielectric Strength and Improved Shrink Times Compared to Competing Nylon or Polyolefin Terminals, It Offers the Best Connectors for Visual Checks
Insulation Coverage
Full Coverage
Termination Style
Crimp
Maximum Voltage
600 V
Contact Material
Copper
Disconnect Style
Bullet Disconnect
Seam Style
Brazed
Contact Finish
Tin

Description

Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Bullet Disconnect, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon with Heat Shrink, Max. Operating Temp. 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.156 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards UL Listed, Barrel Inside Diameter 0.097 in
