Ventboss By Robovent

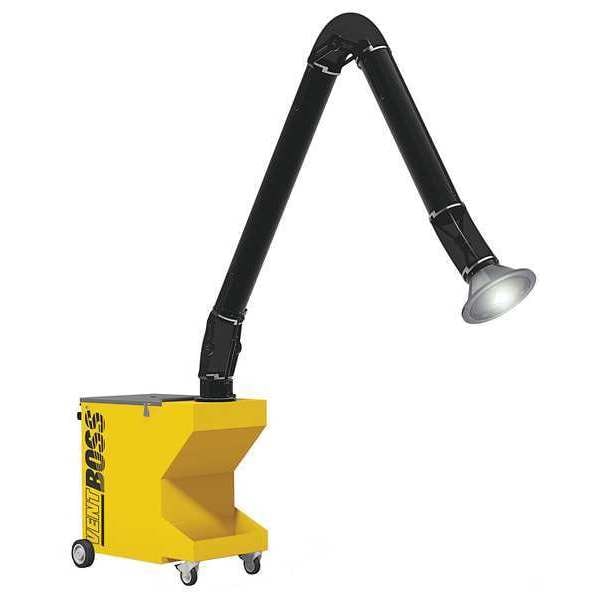

Fume Extractor, Series 100, 60 Hz, 20 in. W

product price: $6,954.00
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Air Flow (CFM) 750
  • MERV 13
  • Input Voltage 110V AC
  • Hz 60
  • Includes Fume Arm with Light
See all product information

Product Information

Dimensions

Width (In.) 20 in
Height (In.) 36 in
Depth (In.) 39 in
Housing Height 36 in
Extraction Arm Length (Maximum) 1.2 ft
Housing Depth 39 in
Housing Width 20 in
Extraction Arm Diameter 6 in

Details

Item Portable Fume Extractor
Air Flow (CFM) 750
MERV 13
Input Voltage 110V AC
Hz 60
Includes Fume Arm with Light
Series Series 100
Filter Media Nanofiber
Sound Level dBA 67
Application Manual Welding
Features Minihelic Filter Gauge
Input (Amps) 13.8 A
Motor HP 0.75 hp
Current 13.8 A
Frequency 60 Hz
Maximum Air Flow 750 cfm
Motor Horsepower (Maximum) 3/4 hp
Safety Features Built-In Spark Arrestance
Filter MERV Rating 13
Includes Extraction Arm Yes
Process Manual Welding
Sound Level 67 dB

Description

Portable Fume Extractor, Maximum Air Flow 750 cfm, Extraction Arm Diameter 6 in, Extraction Arm Length (Maximum) 1.2 ft, Sound Level 67 dB, Filter MERV Rating 13, Input Voltage 110V AC, Motor Horsepower (Maximum) 3/4 hp, Series Series 100, Current 13.8 A, Features Minihelic Filter Gauge, Filter Media Nanofiber, Frequency 60 Hz, Housing Depth 39 in, Housing Height 36 in
