  9. Fume Extractor, Series 100, 60 Hz, 13 MERV
Shop All Fume Extractors & Accessories
Ventboss By Robovent

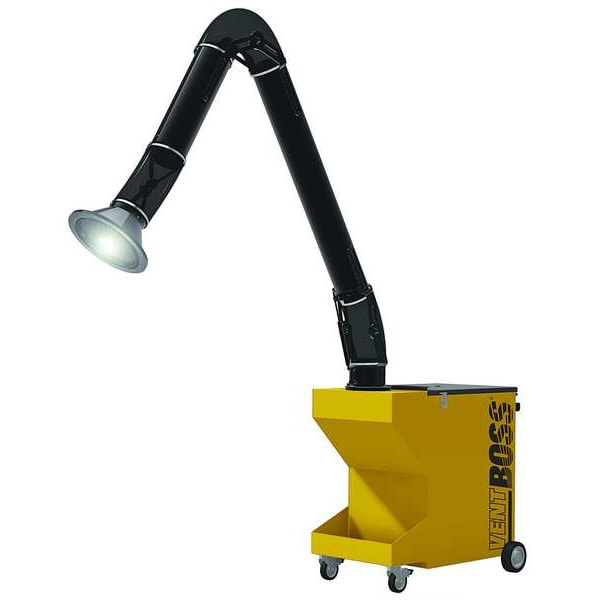

Fume Extractor, Series 100, 60 Hz, 13 MERV

product price: $6,774.00
/ea
Item requires special delivery charges. A $210.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Air Flow (CFM) 750
  • MERV 13
  • Input Voltage 110V AC
  • Hz 60
  • Series Series 100
See all product information

Product Information

Dimensions

Width (In.) 20 in
Height (In.) 36 in
Depth (In.) 39 in
Extraction Arm Diameter 6 in
Extraction Arm Length (Maximum) 10 ft
Housing Depth 39 in
Housing Height 36 in
Housing Width 20 in

Details

Item Portable Fume Extractor
Air Flow (CFM) 750
MERV 13
Input Voltage 110V AC
Hz 60
Series Series 100
Includes Led Light Kit
Filter Media Nanofiber
Sound Level dBA 67
Application Manual Welding
Features Acoustic Silencing, Heavy Duty, High Performance Airfoil Blower
Motor HP 0.75 hp
Input (Amps) 13.8 A
Standards CSA Certified, UL Listed
Filter Area 189 sq ft
Safety Features Built-In Spark Arrestance
Filter MERV Rating 15
Process Manual Welding
Weight 445 lb
Sound Level 67 dB
Frequency 60 Hz
Maximum Air Flow 750 cfm
Housing Color Black, Yellow
Includes Extraction Arm Yes
Motor Horsepower (Maximum) 3/4 hp
Current 13.8 A
Phase Single
Compatible Filter Manufacturer Part Number PL-18D16-A15
Filter Type Reusable Cartridge Filter, Spark Arrestor
Housing Material Steel

Description

Portable Fume Extractor, Maximum Air Flow 750 cfm, Extraction Arm Diameter 6 in, Extraction Arm Length (Maximum) 10 ft, Sound Level 67 dB, Filter Area 189 sq ft, Filter MERV Rating 15, Filter Type Reusable Cartridge Filter, Spark Arrestor, Input Voltage 110V AC, Motor Horsepower (Maximum) 3/4 hp, Series Series 100, Compatible Filter Manufacturer Part Number PL-18D16-A15, Current 13.8 A, Features Acoustic Silencing, Heavy Duty, High Performance Airfoil Blower, Filter Media Nanofiber
