Veratron Deep-Pipe Level Sender - 950mm - 90 to 4 OHM (Discontinued)

-Deep-Pipe Level Sender - 950mm - 90 to 4 OHM-

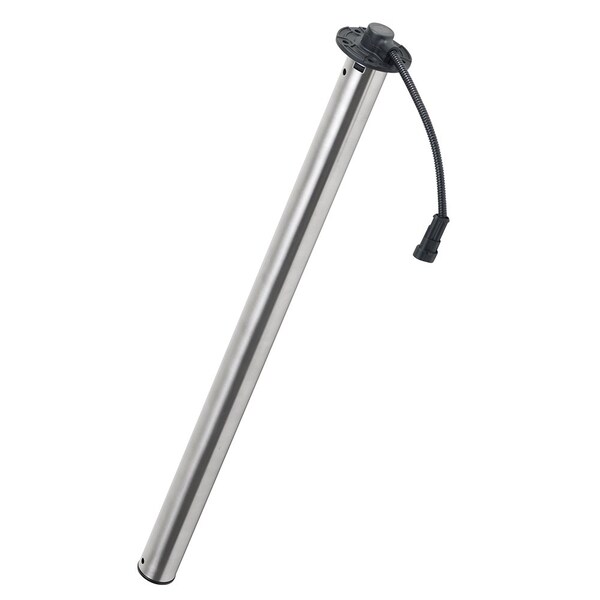

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm – please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

-Features:-Tubular Sensor Stainless Steel

Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water

Length: 950 mm

-Technical Specifications:-TE Superseal Connector 2-Pole IP67

Operating Temp.: -25°C to 65°C or -13°F to 149°F

Operating Voltage: 6 to 24 VDC

Compensation chamber

Flange: 5-Hole SAE Flange 54mm PA66 GF30

Wiring harness with length of 200 mm

Signal ranges: 90–4 OHM

IP67 protection rating

Communication: Analog

-In the Box:-Deep-Pipe Level Sensor

Installation Kit

Safety Instructions

Installation Instructions

*Sold as an Individual
