  6. 60" x 48" Aluminum Truck Dockboard, 15000 lb Capacity

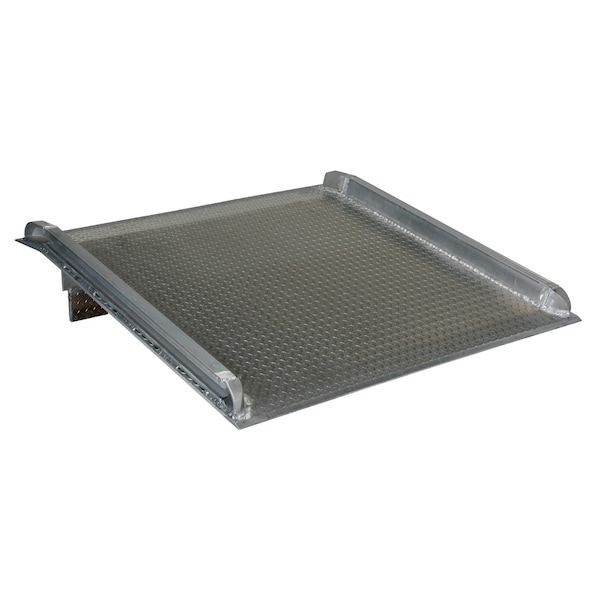

Vestil 60" x 48" Aluminum Truck Dockboard, 15000 lb Capacity BTA-15006048 - main
Shop VESTIL

60" x 48" Aluminum Truck Dockboard, 15000 lb Capacity

  • Mfr # BTA-15006048

  • Zoro # G003505530

product price:  $1,541.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Dock Shelter Item
Aluminum Truck Dockboards (Welded Aluminum Curbs)
Load Capacity
15,000 lb.
Overall Length
48 in.
Overall Height
11-5/8 in.
Overall Width
60 in.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BTA-15006048
Zoro #
G003505530
UPC #
691215008907
Country of Origin
United States

Dimensions

Overall Length
48 in.
Overall Height
11-5/8 in.
Overall Width
60 in.
Overall Depth
48 in.
Usable Width
53-3/4 in.
Height
11.625
Thickness
1/2 in.
Size
48 x 60 x 11.625
Width
60
Depth
48
Length
48

Details

Dock Shelter Item
Aluminum Truck Dockboards (Welded Aluminum Curbs)
Item
60x48 Alum. Truck Dockboard 15k
Load Capacity
15,000 lb.
Material
Aluminum
Includes
Welded Alumin.um Lockin.g Legs
Color
Silver
Standards
OSHA : 1910.30 (a); ANSI : MH 30.2
Weight
177

Description

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
