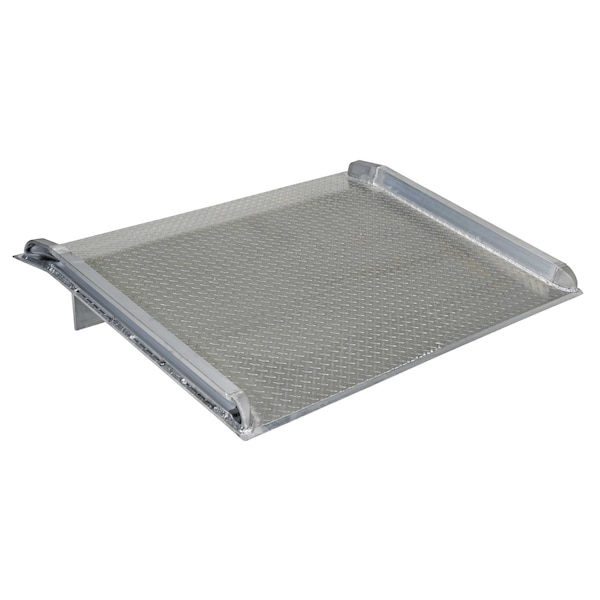

60" x 60" Aluminum Truck Dockboard, 10000 lb Capacity
Mfr # BTA-10006060
Zoro # G903505524
product price:Â
$
1,820.99
/ea
Additional $185.00 delivery surcharge applies per item.
Key Features
Dock Shelter Item
Aluminum Truck Dockboards (Welded Aluminum Curbs)
Load Capacity
10,000 lb.
Overall Length
59-13/16 in.
Overall Height
16-13/16 in.
Overall Width
60 in.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BTA-10006060
- Zoro #
- G903505524
- UPC #
- 691215007627
- Country of Origin
- United States
Dimensions
- Overall Length
- 59-13/16 in.
- Overall Height
- 16-13/16 in.
- Overall Width
- 60 in.
- Thickness
- 1/2 in.
- Length
- 60
- Usable Width
- 54-1/4 in.
- Size
- 59.8125 x 60 x 16.8125
- Overall Depth
- 59-13/16 in.
- Width
- 60
- Depth
- 60
- Height
- 16.8125
Details
- Dock Shelter Item
- Aluminum Truck Dockboards (Welded Aluminum Curbs)
- Item
- 60x60 Alum. Truck Dockboard 10k
- Load Capacity
- 10,000 lb.
- Material
- Aluminum
- Includes
- Welded Alumin.um Lockin.g Legs
- Weight
- 197
- Color
- Silver
- Standards
- OSHA : 1910.30 (a); ANSI : MH 30.2
Description
The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.
