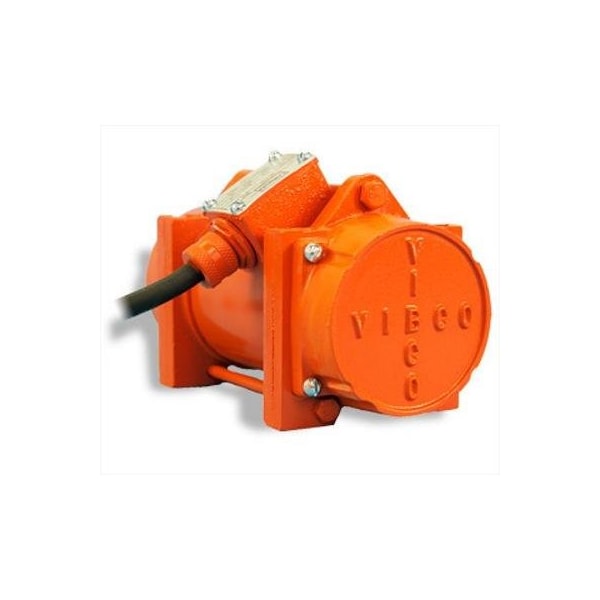

Vibco Electric Vibrator, 0.5 A, 115VAC, 1 Phase 2P-100-1 - main

Electric Vibrator, 0.5 A, 115VAC, 1 Phase

  • Mfr # 2P-100-1

  • Zoro # G0951212

product price: $883.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Heavy Duty
Power Source
Electric
Force Rating
100 to 175 lb.
Voltage
115VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2P-100-1
Zoro #
G0951212
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
8-3/16"
Overall Width
4-1/8"
Overall Height
5"
Mount Hole Size
5/16 in x 4 1/8 in
Mount Hole Center-to-Center Length
4.81 in
Mount Hole Center-to-Center Width
3 in

Details

Vibrator Type
Heavy Duty
Item
Electric Vibrator
Power Source
Electric
Force Rating
100 to 175 lb.
Voltage
115VAC
Phase
1
Speed
3600 vpm
Bin Weight Capacity
1500 lb.
Mounting Position
Universal
dBA
63 @ 3 ft.
HP
1/5
Bearing Type
Prelubricated
Max. Temp.
200 Degrees F
Application
For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes, All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and for Casting Concrete
Standards
Meets ASTM and ASME, CE Certified
Duty
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Force
Mechanically Adjustable
Enclosure
Totally Enclosed Non-Ventilated
Mounting Plate
Sold Separately
Amps
0.5
Includes
Mounting Plate for 2P-100
Motor Enclosure
Totally Enclosed Nonventilated
Duty Cycle
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Maximum Force
175 lbf
Maximum Vibration Speed
3,600 vpm
Operating Voltage
115V AC
Mount Plate Required
Yes
Mounting Orientation
Any Position
Adjustable Speed
Yes
Series
2P
For Environment
Dirt, Dust, Rain, Snow
Horsepower Rating
0.2 hp
For Location
Indoor, Outdoor
Full Load Current
0.5 A
Sound Level
63 dBA
Maximum Operating Temperature
200 Degrees F
Weight
16 lb
Voltage Type
AC
Maximum Bin Weight Capacity
1,500 lb
Adjustable Force
Yes

Description

Electric Vibrator, Duty Cycle Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings, Maximum Force 175 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 63 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 1,500 lb, Full Load Current 0.5 A, Overall Length 8.19 in, Overall Width 4.13 in, Overall Height 5 in, Standards ASME, ASTM, CE Certified, Weight 16 lb
