  11. Electric Vibrator, 32/16 A, 12VDC, 1 Phase

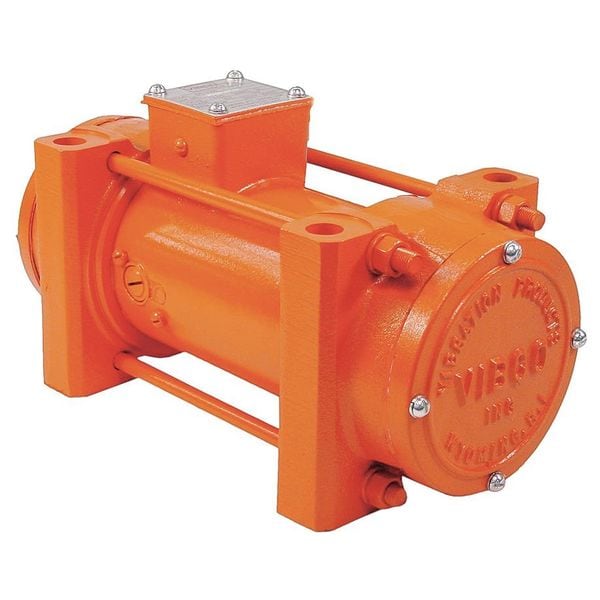

Vibco Electric Vibrator, 32/16 A, 12VDC, 1 Phase DC-1600 - main

Electric Vibrator, 32/16 A, 12VDC, 1 Phase

  • Mfr # DC-1600

  • Zoro # G1424166

product price: $1,316.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Battery Operated
Power Source
Electric - 12VDC Battery
Force Rating
1000 lb
Voltage
12VDC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DC-1600
Zoro #
G1424166
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
11-1/8"
Overall Width
5-5/8"
Overall Height
6-1/4"
Mount Hole Center-to-Center Width
4.5 in
Mount Hole Center-to-Center Length
7 in
Mount Hole Size
1/2 in X 5 1/8 in

Details

Vibrator Type
Battery Operated
Item
Electric Vibrator
Power Source
Electric - 12VDC Battery
Force Rating
1000 lb
Voltage
12VDC
Phase
1
Speed
5000 vpm
Bin Weight Capacity
10,000 lb
Bearing Type
Prelubricated
Application
Speeds Emptying of Trucks, Highway Equipment, Fertilizer Trailers, Ready Mix Trucks and Spreaders
dBA
82
Amps
32/16
Duty
Intermittent
Mounting Position
Universal
Force
Mechanically Adjustable
Mounting Plate
Sold Separately
End Bell Material
Cast Iron
Enclosure
Totally Enclosed
Max. Temp.
104 Degrees F
Includes
900 & DC-1600, Channel Iron (Inches), DC-1600, Mounting Plate, Safety Cable, US-1600, Wire Kit For DC-700
For Environment
Highly Corrosive
Mounting Orientation
Any Position
Maximum Operating Temperature
104 Degrees F
Maximum Vibration Speed
5,000 vpm
Maximum Force
3,500 lbf
For Location
Indoor, Outdoor
Motor Enclosure
Totally Enclosed Nonventilated
Adjustable Speed
Yes
Resistance Properties
Corrosion Resistant
Duty Cycle
Intermittent
Operating Voltage
12V DC
Full Load Current
32 A
Sound Level
82 dBA
Weight
30 lb
Adjustable Force
Yes
Maximum Bin Weight Capacity
10,000 lb
Voltage Type
DC
Series
DC
Mount Plate Required
Yes

Description

Electric Vibrator, Duty Cycle Intermittent, Maximum Force 3,500 lbf, Voltage Type DC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 82 dBA, Power Source Battery, Operating Voltage 12V DC, Maximum Bin Weight Capacity 10,000 lb, Full Load Current 32 A, Overall Length 11.13 in, Overall Width 5.63 in, Overall Height 6.25 in, Weight 30 lb, Adjustable Force Yes, Adjustable Speed Yes
