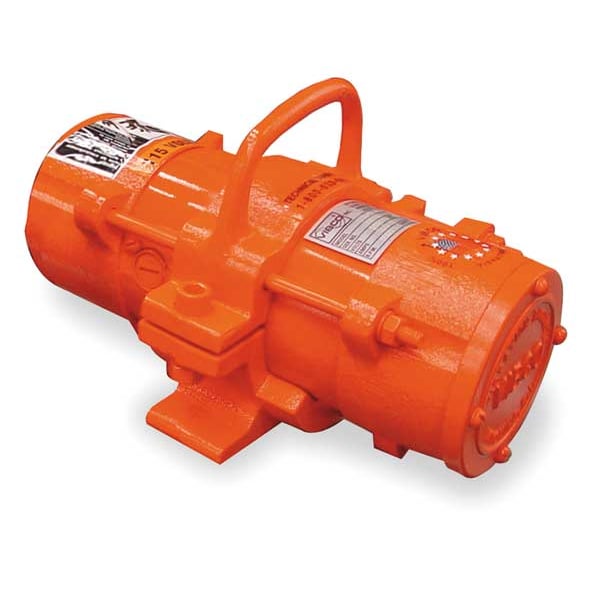

Electric Vibrator, 4.50 A, 115VAC, 1 Phase

  • Mfr # USL-900

  • Zoro # G7998234


product price: $1,370.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
High Frequency
Power Source
Electric
Force Rating
600 to 1100 lb
Voltage
115VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
USL-900
Zoro #
G7998234
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
11"
Overall Width
7-7/8"
Overall Height
7-1/4"
Mount Hole Size
3/4 in
Mount Hole Center-to-Center Width
4.75 in
Mount Hole Center-to-Center Length
0.88 in

Details

Item
Electric Vibrator
Vibrator Type
High Frequency
Power Source
Electric
Force Rating
600 to 1100 lb
Voltage
115VAC
Phase
1
Speed
10,000 vpm
Bin Weight Capacity
7000 lb
Application
For Trucking and Mobile
Bearing Type
Prelubricated
Duty
Intermittent
HP
1/3
dBA
85
Mounting Plate
Sold Separately
Mounting Position
Universal
Enclosure
Totally Enclosed
Amps
4.50
Force
Mechanically Adjustable
Max. Temp.
200 Degrees F
Includes
Channel Iron (Inches), Safety Cable, Speed Adjuster, Vibrator Mounting Bracket For Small L&C
Mount Plate Required
Yes
Duty Cycle
Intermittent
For Environment
Dirt, Dust, Rain, Snow
Weight
31 lb
Horsepower Rating
0.33 hp
Adjustable Force
Yes
Series
USL
Maximum Force
1,100 lbf
Motor Enclosure
Totally Enclosed Nonventilated
Sound Level
85 dBA
Full Load Current
4.5 A
Maximum Bin Weight Capacity
7,000 lb
Maximum Operating Temperature
200 Degrees F
Operating Voltage
115V AC
Maximum Vibration Speed
10,000 vpm
Mounting Orientation
Any Position
For Location
Indoor, Outdoor
Voltage Type
AC
Adjustable Speed
Yes

Description

Electric Vibrator, Duty Cycle Intermittent, Maximum Force 1,100 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 85 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 7,000 lb, Full Load Current 4.5 A, Overall Length 11 in, Overall Width 7.88 in, Overall Height 7.25 in, Weight 31 lb, Horsepower Rating 0.33 hp, Adjustable Force Yes, Adjustable Speed Yes, Application For Trucking, Mobile
