  11. Pneumatic Vibrator, 600 lb, 6200 vpm, 80psi
Shop All Vibrators
Vibco

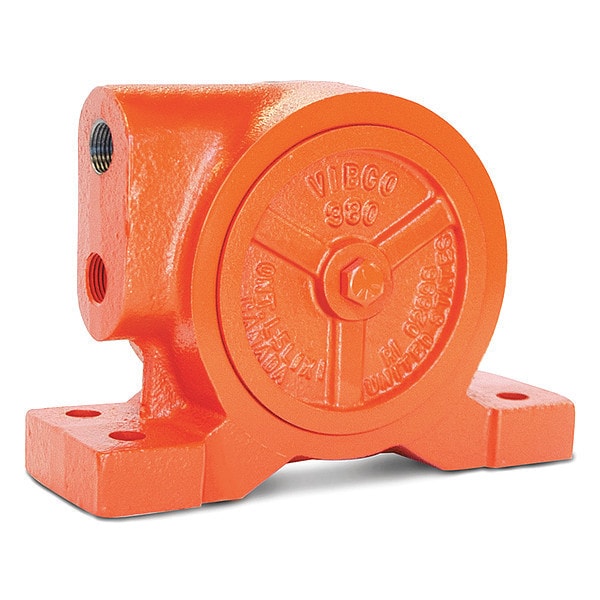

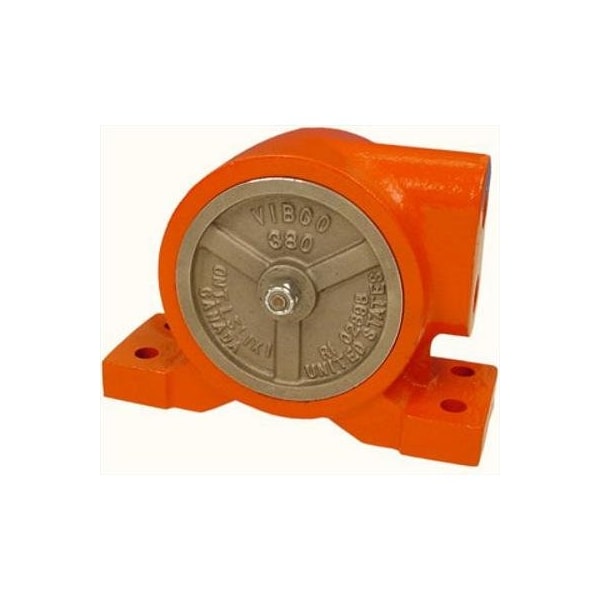

Pneumatic Vibrator, 600 lb, 6200 vpm, 80psi

product price: $361.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Ball
  • Force Rating 600 lb.
  • CFM @ 80 PSI 20
  • Speed @ 60 psi 6200 VPM
  • Overall Length 6-7/8"
See all product information

Product Information

  • Brand Vibco
  • MFR # V-380
  • Zoro # G0906236
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 6-7/8"
Overall Width 2-15/16"
Overall Height 4-7/8"
Outlet Connection Size 3/8 in
Mount Hole Center-to-Center Width 140 mm
Mount Hole Size 10
Inlet Connection Size 3/8 in

Details

Vibrator Type Ball
Item Pneumatic Vibrator
Force Rating 600 lb.
CFM @ 80 PSI 20
Speed @ 60 psi 6200 VPM
Speed @ 80 psi 6500 VPM
dB @ 60 psi 78
dB @ 80 psi 78
Bin Weight Capacity 6000 lb.
Inlet Port 3/8" NPT
Outlet Port 3/8" NPT
Max. Temp. 350 Degrees F
Duty Continuous
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
Max. Pressure 80 psi
Housing Material Cast iron
Muffler 1A327
Mounting Universal
Ball Material Hardened Steel
Mounting Plate Sold Separately
CFM @ 60 psi 15
Force @ 80 psi 600 lbf
Maximum Vibration Speed 6,500 vpm
Mount Plate Included No
Vibration Speeds @ PSI 5,500 vpm @ 40 psi, 6,200 vpm @ 60 psi, 6,500 vpm @ 80 psi
Inlet Connection Type NPT
Outlet Connection Type NPT
Duty Cycle Continuous
Maximum Force 600 lbf
Sound Level 78 dBA
Maximum Bin Weight Capacity 6,000 lb
Pneumatic Vibrator Type Ball
Series V
Compatible Muffler Grainger Part Number 1A327
Maximum Inlet Pressure 80 psi
Vibration Speed @ 60 psi 6,200 vpm
Maximum Operating Temperature 350 Degrees F
Mount Plate Required Yes
Weight 8 lb
Force @ PSI 600 lbf @ 80 psi
Air Flow Rate 10 cfm @ 40 psi, 15 cfm @ 60 psi, 20 cfm @ 80 psi
Vibration Speed @ 80 psi 6,500 vpm
Mount Type Universal

Description

Pneumatic Vibrator, Housing Material Cast Iron, Outlet Connection Size 3/8 in, Outlet Connection Type NPT, Air Flow Rate 10 cfm @ 40 psi, 15 cfm @ 60 psi, 20 cfm @ 80 psi, Maximum Force 600 lbf, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 6,500 vpm, Maximum Bin Weight Capacity 6,000 lb, Overall Height 4.88 in, Overall Length 2.95 in, Overall Width 6.89 in, Sound Level 78 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball, Force @ PSI 600 lbf @ 80 psi
