  11. Electric Vibrator, 8.0/4.0 A, 115/230VAC, 1 Phase

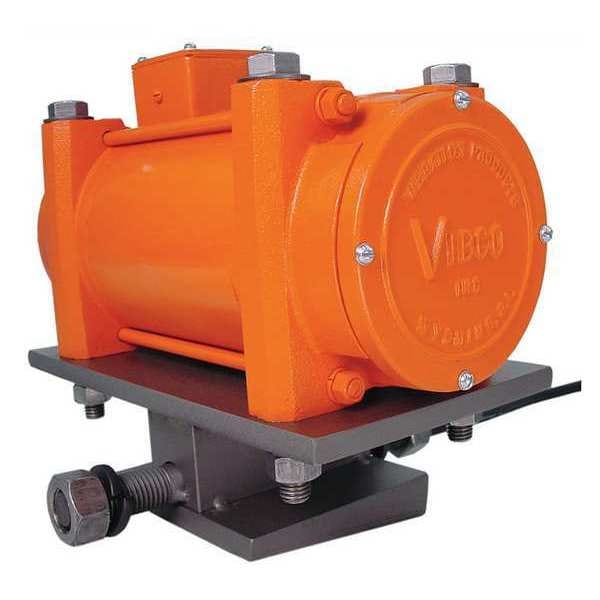

Vibco Electric Vibrator, 8.0/4.0 A, 115/230VAC, 1 Phase VMW-800-1 - main

Electric Vibrator, 8.0/4.0 A, 115/230VAC, 1 Phase

  • Mfr # VMW-800-1

  • Zoro # G3487075

product price: $2,864.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Vibrator Type
Railroad Car Shaker/Wedge Bracket
Force Rating
1700 lb.
Power Source
Electric
Voltage
115/230VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VMW-800-1
Zoro #
G3487075
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
10-7/8"
Overall Width
5-1/2"
Overall Height
10-1/8"

Details

Vibrator Type
Railroad Car Shaker/Wedge Bracket
Item
Electric Vibrator
Force Rating
1700 lb.
Power Source
Electric
Voltage
115/230VAC
Phase
1
Speed
3600 vpm
HP
3/4
dBA
75
Duty
Continuous
Mounting Plate
Sold Separately
Mounting Position
Universal
Application
Cement, Sugar, Flour, Chemical Salts (No Moisture), Corn Grits, Arsenic, Barley Hops, Carbon Black, Borax, Fluoride, Gypsum, Sodic Sulphate, Peanuts, Sodium Nitrate, Semolina, Tri-sodium Phosphate and like Materials
Max. Temp.
200 Degrees F
Force
Mechanically Adjustable
Amps
8.0/4.0
Enclosure
Totally Enclosed Non-Ventilated
Operating Voltage
115/230V AC
Duty Cycle
Continuous
Sound Level
75 dBA
Adjustable Force
Yes
Adjustable Speed
Yes
Mount Plate Required
Yes
Maximum Vibration Speed
3,600 vpm
Weight
75 lb
Mounting Orientation
Any Position
Maximum Operating Temperature
200 Degrees F
Voltage Type
AC
Series
VMW
Horsepower Rating
0.75 hp
Maximum Force
1,700 lbf
Motor Enclosure
Totally Enclosed Nonventilated
Full Load Current
8.0/4.0 A

Description

Electric Vibrator, Duty Cycle Continuous, Maximum Force 1,700 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 75 dBA, Power Source Electric Motor, Operating Voltage 115/230V AC, Full Load Current 8.0/4.0 A, Overall Length 10.88 in, Overall Width 5.5 in, Overall Height 10.13 in, Weight 75 lb, Horsepower Rating 0.75 hp, Adjustable Force Yes, Adjustable Speed Yes
