Shop All Vibrators
Vibco

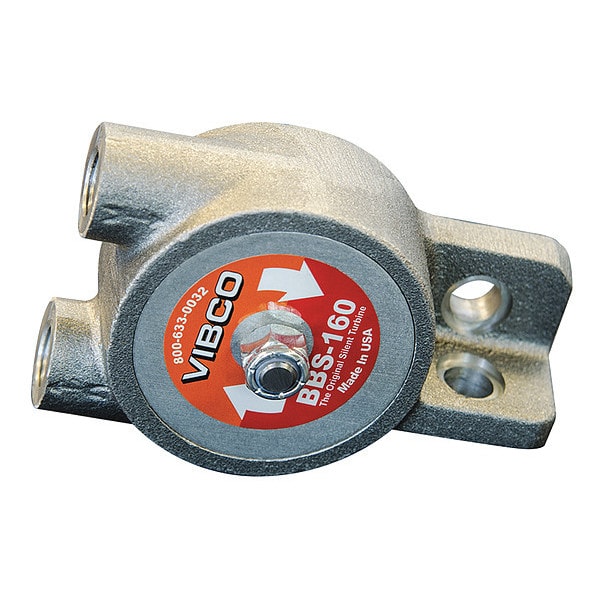

Pneumatic Vibrator, 160 lb, 5500 vpm, 80psi

original price: $166.99
10% off
new price: $149.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Turbine
  • Force Rating 160 lb.
  • CFM @ 80 PSI 7
  • Speed @ 60 psi 10,000 VPM
  • Speed @ 80 psi 12,000 VPM
See all product information

Product Information

  • Brand Vibco
  • MFR # BBS-160
  • Zoro # G2213416
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 4-1/8"
Overall Width 2"
Overall Height 2-9/16"
Outlet Connection Size 1/4 in
Mount Hole Size 10
Inlet Connection Size 1/4 in

Details

Item Pneumatic Vibrator
Vibrator Type Turbine
Force Rating 160 lb.
CFM @ 80 PSI 7
Speed @ 60 psi 10,000 VPM
Speed @ 80 psi 12,000 VPM
Bin Weight Capacity 1600 lb.
dB @ 80 psi 67
Inlet Port 1/4" NPT
Outlet Port 1/4" NPT
Mounting Single-bolt
Max. Temp. 350 Degrees F
Muffler 1A326
Standards CE Certified, ATEX Certified
Mounting Plate Sold Separately
Duty Continuous
CFM @ 60 psi 1.1
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries, Parts Feeders and Foundry Matchplates
Max. Pressure 80 psi
Housing Material Aluminum
Sound Level 67 dBA
Force @ PSI 160 lbf @ 80 psi, 60 lbf @ 60 psi
Mount Plate Required Yes
Outlet Connection Type NPT
Mount Type Single-bolt
Compatible Muffler Grainger Part Number 1A326
Series BBS
Maximum Inlet Pressure 80 psi
Pneumatic Vibrator Type Turbine
Inlet Connection Type NPT
Maximum Bin Weight Capacity 1,600 lb
Maximum Vibration Speed 9,000 vpm
Maximum Operating Temperature 350 Degrees F
Air Flow Rate 5 cfm @ 60 psi, 7 cfm @ 80 psi
Maximum Force 160 lbf
Force @ 60 psi 60 lbf
Vibration Speeds @ PSI 5,500 vpm @ 60 psi, 9,000 vpm @ 80 psi
Duty Cycle Continuous
Vibration Speed @ 60 psi 5,500 vpm
Weight 1 lb
Force @ 80 psi 160 lbf
Vibration Speed @ 80 psi 9,000 vpm
Mount Plate Included No

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Air Flow Rate 5 cfm @ 60 psi, 7 cfm @ 80 psi, Maximum Force 160 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 9,000 vpm, Maximum Bin Weight Capacity 1,600 lb, Overall Height 2.56 in, Overall Length 4.13 in, Overall Width 2.01 in, Sound Level 67 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine, Force @ PSI 160 lbf @ 80 psi, 60 lbf @ 60 psi
