  11. Pneumatic Vibrator, 182lb, 10, 500vpm, 80psi

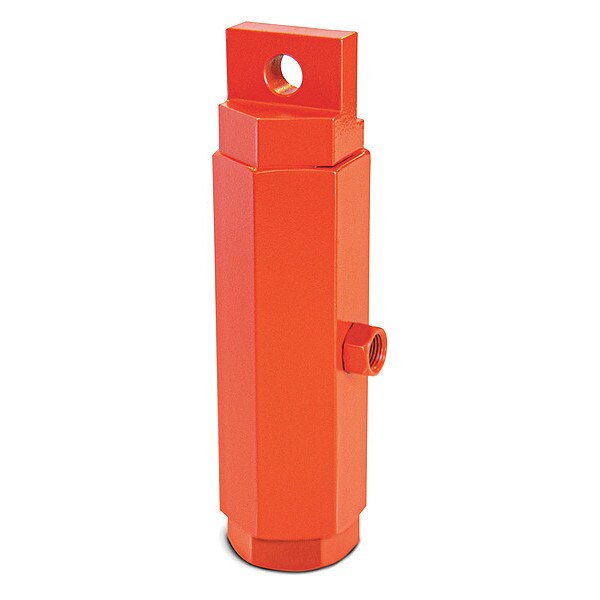

Vibco Pneumatic Vibrator, 182lb, 10, 500vpm, 80psi 10-3/4 - main

Pneumatic Vibrator, 182lb, 10, 500vpm, 80psi

  • Mfr # 10-3/4

  • Zoro # G0542123

product price: $219.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Piston
Force Rating
182 lb.
CFM @ 80 PSI
5
Speed @ 60 psi
10,500 VPM
Overall Length
5-1/2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10-3/4
Zoro #
G0542123
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
5-1/2"
Overall Width
1-1/4"
Overall Height
1-15/16"
Outlet Connection Size
1/8 in
Inlet Connection Size
1/8 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Piston
Force Rating
182 lb.
CFM @ 80 PSI
5
Speed @ 60 psi
10,500 VPM
Speed @ 80 psi
13,000 VPM
dB @ 80 psi
91
Bin Weight Capacity
200 lb.
Inlet Port
1/8" NPT
Outlet Port
1/8" NPT
Standards
CE certified
Muffler
1A325
Mounting
End
Mounting Plate
Sold Separately
Max. Pressure
80 psi
CFM @ 60 psi
3.5
Housing Material
Steel
Application
Mining, Chemical Plants, Plastics, Manufacturing, Foundries and Paper Plants
Duty
Continuous
Vibration Speed @ 60 psi
10,500 vpm
Minimum Bin Weight Capacity
100 lb
Maximum Force
182 lbf
Inlet Connection Type
NPT
Mount Plate Required
Yes
Vibration Speeds @ PSI
10,500 vpm @ 60 psi, 13,000 vpm @ 80 psi, 7,500 vpm @ 40 psi
Maximum Inlet Pressure
80 psi
Maximum Bin Weight Capacity
200 lb
Pneumatic Vibrator Type
Piston
Vibration Speed @ 80 psi
13,000 vpm
Mount Type
End
Force @ 80 psi
182 lbf
Air Flow Rate
3 cfm @ 40 psi, 3.5 cfm @ 60 psi, 5 cfm @ 80 psi
Duty Cycle
Continuous
Mount Plate Included
No
Maximum Vibration Speed
13,000 vpm
Force @ PSI
182 lbf @ 80 psi
Outlet Connection Type
NPT
Sound Level
91 dBA

Description

Piston Vibrator, Housing Material Steel, Outlet Connection Size 1/8 in, Outlet Connection Type NPT, Air Flow Rate 3 cfm @ 40 psi, 3.5 cfm @ 60 psi, 5 cfm @ 80 psi, Maximum Force 182 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 13,000 vpm, Maximum Bin Weight Capacity 200 lb, Overall Height 5.51 in, Overall Length 1.61 in, Overall Width 1.61 in, Sound Level 91 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Piston, Force @ PSI 182 lbf @ 80 psi
