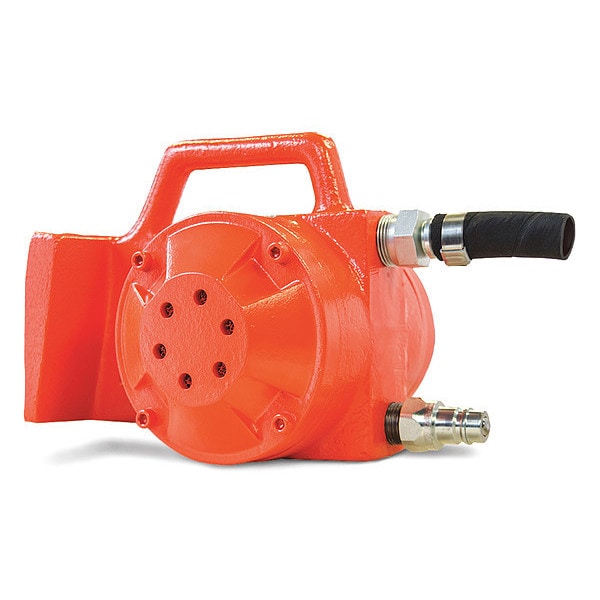

Pneumatic Vibrator, 7000 lb, 5000vpm, 80psi

  • Mfr # CCW-5000

  • Zoro # G2632314

product price:
$
1,860.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Heavy Duty Turbine
Force Rating
7000 lb.
CFM @ 80 PSI
29.2
Speed @ 60 psi
5000 VPM
Speed @ 80 psi
7200 VPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CCW-5000
Zoro #
G2632314
UPC #
-
Country of Origin
United States
Vibrator Type
Heavy Duty Turbine
Item
Pneumatic Vibrator
Force Rating
7000 lb.
CFM @ 80 PSI
29.2
Speed @ 60 psi
5000 VPM
Speed @ 80 psi
7200 VPM
Bin Weight Capacity
70,000 lb.
dB @ 80 psi
78
Inlet Port
1" NPT
Outlet Port
3/4" NPT
Standards
OSHA
Application
Aluminium Shot, Bone Black, Carbon Black, Cement, Flour
Max. Pressure
80 psi
CFM @ 60 psi
40
Duty
Continuous
Max. Temp.
350 Degrees F
Mounting Plate
Sold Separately
Air Flow Rate
40 cfm @ 60 psi, 50 cfm @ 80 psi
Weight
58 lb
Vibration Speeds @ PSI
5,000 vpm @ 60 psi, 7,200 vpm @ 80 psi
Vibration Speed @ 60 psi
5,000 vpm
Vibration Speed @ 80 psi
7,200 vpm
Force @ 60 psi
3,380 lbf
Series
CCW
Inlet Connection Type
NPT
Maximum Force
7,000 lbf
Maximum Inlet Pressure
80 psi
Duty Cycle
Continuous
Maximum Vibration Speed
7,200 vpm
Mount Plate Required
Yes
Pneumatic Vibrator Type
Turbine
Force @ PSI
3,380 lbf @ 60 psi, 7,000 lbf @ 80 psi
Outlet Connection Type
NPT
Mount Plate Included
No
Maximum Operating Temperature
350 Degrees F
Maximum Bin Weight Capacity
70,000 lb
Sound Level
78 dBA
Force @ 80 psi
7,000 lbf

Description

Pneumatic Vibrator, Outlet Connection Size 3/4 in, Outlet Connection Type NPT, Air Flow Rate 40 cfm @ 60 psi, 50 cfm @ 80 psi, Maximum Force 7,000 lbf, Inlet Connection Size 1 in, Inlet Connection Type NPT, Maximum Vibration Speed 7,200 vpm, Maximum Bin Weight Capacity 70,000 lb, Overall Height 8.62 in, Overall Length 9.76 in, Overall Width 8.62 in, Sound Level 78 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine, Force @ PSI 3,380 lbf @ 60 psi, 7,000 lbf @ 80 psi
