  11. Pneumatic Vibrator, 5000 lb, 4000vpm, 80psi

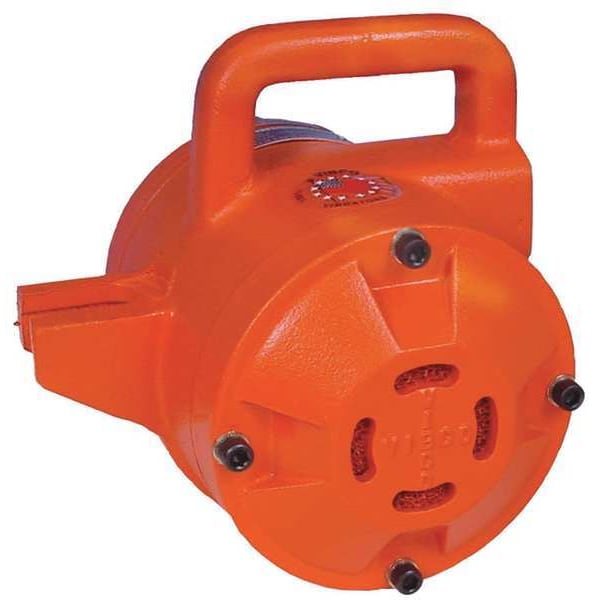

Vibco Pneumatic Vibrator, 5000 lb, 4000vpm, 80psi CCL-5000 - main

Pneumatic Vibrator, 5000 lb, 4000vpm, 80psi

  • Mfr # CCL-5000

  • Zoro # G2897851

product price: $1,197.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Heavy Duty Turbine
Force Rating
5000 lb.
CFM @ 80 PSI
50
Speed @ 60 psi
4000 VPM
Overall Length
9-3/4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCL-5000
Zoro #
G2897851
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
9-3/4"
Overall Width
8-5/8"
Overall Height
8-5/8"
Inlet Connection Size
1 in
Outlet Connection Size
1 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Heavy Duty Turbine
Force Rating
5000 lb.
CFM @ 80 PSI
50
Speed @ 60 psi
4000 VPM
Speed @ 80 psi
6000 VPM
Bin Weight Capacity
50,000 lb.
dB @ 80 psi
75
Inlet Port
1" NPT
Outlet Port
1" NPT
Application
Permanent or Portable Applications in Large Bins, Hoppers, Chutes, Packing Tables and Screens
Max. Pressure
80 psi
Duty
Continuous
Max. Temp.
350 Degrees F
Bearing Type
Prelubricated
Housing Material
Cast iron
CFM @ 60 psi
35
Muffler
Included
Standards
Meets OSHA
Mounting Plate
Sold Separately
Sound Level
75 dBA
Mount Plate Required
Yes
Vibration Speeds @ PSI
4,000 vpm @ 60 psi, 6,000 vpm @ 80 psi
Maximum Vibration Speed
6,000 vpm
Inlet Connection Type
NPT
Mount Plate Included
No
Pneumatic Vibrator Type
Turbine
Maximum Force
5,000 lbf
Air Flow Rate
35 cfm @ 60 psi, 50 cfm @ 80 psi
Force @ 80 psi
5,000 lbf
Maximum Bin Weight Capacity
50,000 lb
Outlet Connection Type
NPT
Vibration Speed @ 80 psi
6,000 vpm
Force @ 60 psi
2,200 lbf
Maximum Inlet Pressure
80 psi
Duty Cycle
Continuous
Series
CCL
Weight
41 lb
Force @ PSI
2,200 lbf @ 60 psi, 5,000 lbf @ 80 psi
Maximum Operating Temperature
350 Degrees F
Vibration Speed @ 60 psi
4,000 vpm

Description

Pneumatic Vibrator, Housing Material Cast Iron, Outlet Connection Size 1 in, Outlet Connection Type NPT, Air Flow Rate 35 cfm @ 60 psi, 50 cfm @ 80 psi, Maximum Force 5,000 lbf, Inlet Connection Size 1 in, Inlet Connection Type NPT, Maximum Vibration Speed 6,000 vpm, Maximum Bin Weight Capacity 50,000 lb, Overall Height 8.62 in, Overall Length 9.37 in, Overall Width 8.62 in, Sound Level 75 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
