Shop All Vibrators
Vibco

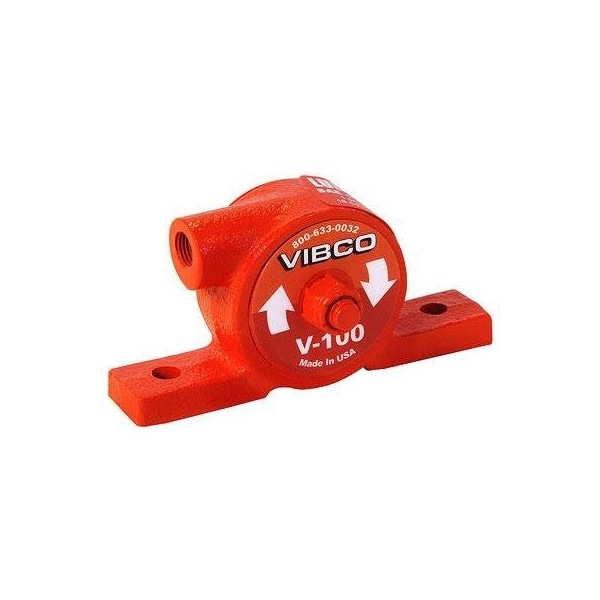

Pneumatic Vibrator, 55 lb, 24,000vpm, 60psi

product price: $164.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Ball
  • Force Rating 55 lb
  • Speed @ 60 psi 24,000 VPM
  • Overall Length 3-7/8"
  • Overall Width 1-11/16"
See all product information

Product Information

  • Brand Vibco
  • MFR # V-100
  • Zoro # G0429624
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 3-7/8"
Overall Width 1-11/16"
Overall Height 2"
Outlet Connection Size 1/8 in
Mount Hole Size 7
Mount Hole Center-to-Center Width 77 mm
Inlet Connection Size 1/8 in

Details

Vibrator Type Ball
Item Pneumatic Vibrator
Force Rating 55 lb
Speed @ 60 psi 24,000 VPM
dB @ 60 psi 75
Bin Weight Capacity 550 lb
Inlet Port 1/8" NPT
Outlet Port 1/8" NPT
Housing Material Cast iron
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
CFM @ 60 psi 6
Mounting Plate Sold Separately
Max. Pressure 60 psi
Max. Temp. 350 Degrees F
Ball Material Hardened Steel
Mounting Universal
Muffler Included
Duty Continuous
Pneumatic Vibrator Type Ball
Force @ PSI 55 lbf @ 60 psi
Maximum Inlet Pressure 60 psi
Vibration Speed @ 60 psi 24,000 vpm
Mount Plate Included No
Duty Cycle Continuous
Weight 0.8 lb
Maximum Force 55 lbf
Series V
Sound Level 75 dBA
Mount Type Universal
Inlet Connection Type NPT
Maximum Vibration Speed 24,000 vpm
Force @ 60 psi 55 lbf
Maximum Bin Weight Capacity 550 lb
Mount Plate Required Yes
Outlet Connection Type NPT
Air Flow Rate 4 cfm @ 20 psi, 6 cfm @ 40 psi, 6 cfm @ 60 psi
Maximum Operating Temperature 350 Degrees F
Vibration Speeds @ PSI 18000 vpm @ 20 psi, 20,000 vpm @ 40 psi, 24,000 vpm @ 60 psi

Description

Pneumatic Vibrator, Housing Material Cast Iron, Outlet Connection Size 1/8 in, Outlet Connection Type NPT, Air Flow Rate 4 cfm @ 20 psi, 6 cfm @ 40 psi, 6 cfm @ 60 psi, Maximum Force 55 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 24,000 vpm, Maximum Bin Weight Capacity 550 lb, Overall Height 2.01 in, Overall Length 1.69 in, Overall Width 3.9 in, Sound Level 75 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball, Force @ PSI 55 lbf @ 60 psi
